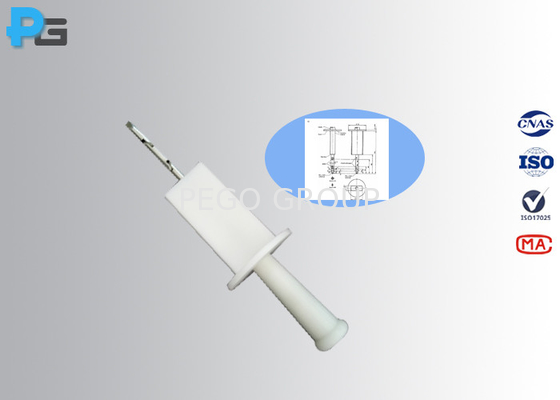

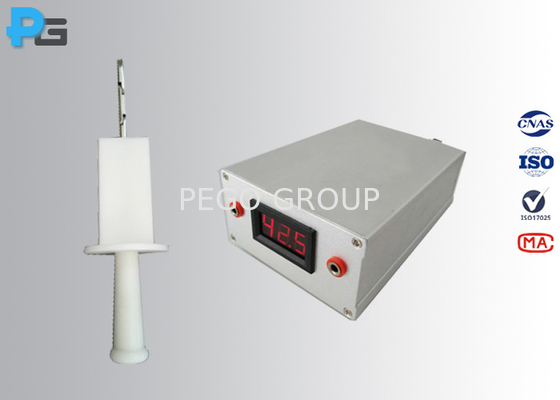

EV Connectors Testing Equipment IEC 62196 Test Finger Probe B with 42V Electric Indicator
1. Introduction of Test Finger Probe B:
Test finger probe B is a high precision test equipment whcih can be used to test the EV socket-outlets and vehicle connectors, it's strictly designed according to IEC61032 figure 2, and meets the requirements of IEC62196-1 clause 10.1, UL507, UL1278 figure 8 and IEC60529 figure 2. The test finger probe is intended to verify the basic protection against access to hazardous parts, it is also used to verfiy the protection against access with a finger.
The test finger probe B consists of finger, baffle, insulated handle, and it can be customized with an alligator clip at the end of the handle for anti-electric shock test. It also can be customized a M6 threaded hole at the end of the handle to equip with the pull and push dynamometer or customized directly with 10N thruster for enclosure protection test.
2. Specification of Jointed Test Finger
| Model |
PG-TPB |
PG-TPB(1) |
PG-TPB(2) |
PG-TPB(3) |
| Jointed size 1 |
30±0.2 |
30±0.2 |
30±0.2 |
30±0.2 |
| Jointed size 2 |
60±0.2 |
60±0.2 |
60±0.2 |
60±0.2 |
| Finger length |
80±0.2 |
80±0.2 |
100±0.2 |
80±0.2 |
| Fingertip to baffle size |
180±0.2 |
180±0.2 |
---- |
180±0.2 |
| Fingertip cutting cylindrical |
R2±0.05 |
R2±0.05 |
R2±0.05 |
R2±0.05 |
| Fingertip fillet |
S4±0.05 |
S4±0.05 |
S4±0.05 |
S4±0.05 |
| Fingertip cut angle |
37o 0 -10′ |
37o 0 -10′ |
37o 0 -10′ |
37o 0 -10′ |
| Fingertip taper |
14 o 0 -10′ |
14 o 0 -10′ |
14 o 0 -10′ |
14 o 0 -10′ |
| Diameter |
Ф12 0 -0.05 |
Ф12 0 -0.05 |
Ф12 0 -0.05 |
Ф12 0 -0.05 |
| Diameter of section A-A |
Ф50 |
Ф50 |
---- |
Ф50 |
| Width of sectrion A-A |
20±0.2 |
---- |
---- |
20±0.2 |
| Diameter of baffle |
Ф75±0.2 |
Ф75±0.2 |
Ф125±0.2 |
Ф75±0.2 |
| Thickness of baffle |
5±0.5 |
5±0.5 |
---- |
5±0.5 |
| Force |
---- |
---- |
---- |
10-30N |
| Standard comply to |
IEC61032 |
IEC60335-1 |
IEC60335-2-14 |
IEC60529 |
3. Figure of Test Finger Probe
4. FAQ
1). What standard does the test finger probe B conform to?
Answer: It can meets the IEC61032, IEC60529, IEC62196, IEC60335, IEC61851-1, IEC60061 etc.
2). Will the test finger probe B come with the calibration certificate?
Answer: Yes, it can come with a third-lab calibration sertificate, but the cost is charged alone.
3).What's the lead time of the test finger probe B?
Answer: We have the probe in stock, it can be deliveried out immediately.
4). Is the probe with thruster?
Answer: We have two models for selection, one is without thruster but with M6 threaded hole at the end of the handle, another is with thruster and the thruster can be customized with 10N, 50N, etc.
