Product Description:
Our Impact Test Device is designed with precision and accuracy in mind, featuring varying r/mm sizes of 6, -, 10, and 17 for a wide range of testing options. The device is also equipped with an input of 220V/50Hz, allowing for efficient and effective testing.
Our Metal Charpy Impact Testing Equipment also features f/mm sizes of 10, 20, 20, and 25, further expanding its testing capabilities. The device also has varying energy/J options of 5 ±5%, 10 ±5%, 20 ±5%, and 50 ±5%, ensuring accurate and reliable results every time.
With our Metal Charpy Impact Testing Equipment, you can be confident in the quality and strength of your materials. Invest in our Impact Test Device today and take the first step towards ensuring the safety and reliability of your metal products.
Features:
-

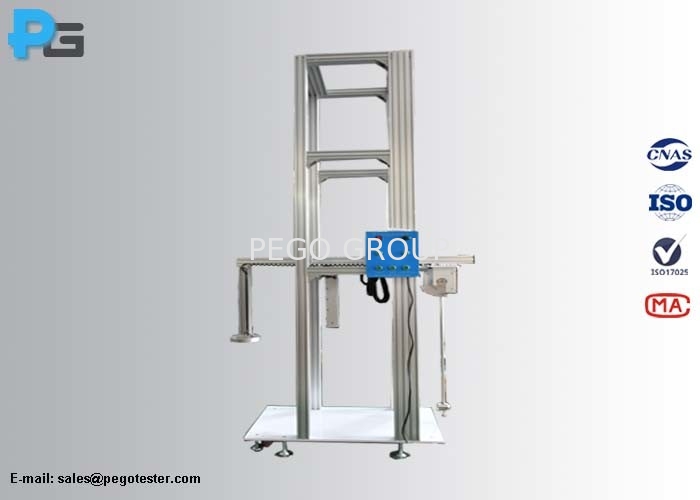

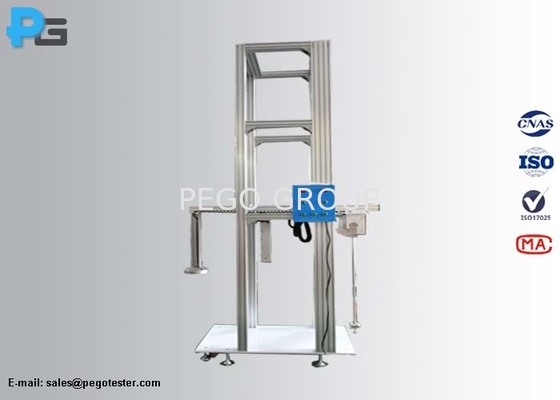

Product Name: IK08 to IK11 Mechanical Impact Test Apparatus for Testing EV Supply Equipment as Per IEC61851-1
-
Energy/J: 5 ±5%, 10 ±5%, 20 ±5%, 50 ±5%
-
Guideway: Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*481.5mm, Φ133mm*587mm
-
Test IK Level: IK08 To IK11
-
Working power: 220V/50Hz
Our Impact Test Equipment is a reliable and accurate piece of Metal Impact Testing Equipment that is perfect for testing EV Supply Equipment as per IEC61851-1 standards. It has a range of Energy/J settings including 5 ±5%, 10 ±5%, 20 ±5%, and 50 ±5%. The Guideway is available in Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*481.5mm, Φ133mm*587mm sizes. The Test IK Level is between IK08 To IK11. It works on 220V/50Hz working power.
Technical Parameters:
|
Product Name:
|
IK08 to IK11 Mechanical Impact Test Apparatus for Testing EV Supply Equipment as Per IEC61851-1
|
|
Impact Test Equipment
|
|
|
Impact Test Device
|
|
|
Drop mode:
|
Button control and electromagnet instantaneous release (for vertical impact tests), Manual control (for pendulum impact tests)
|
|
Degrees of protection against external mechanical impacts:
|
IK01: 0.14J, IK02: 0.2J, IK03: 0.35J, IK04: 0.5J, IK05: 0.7J, IK06: 1J, IK07: 2J, IK08: 5J, IK09: 10J, IK10: 20J
|
|
Equivalent mass±2%kg:
|
1.7, 5, 5, 10
|
|
Working power:
|
220V/50Hz
|
|
R/mm:
|
25, 50, 50, 50
|
|
r/mm:
|
6, -, 10, 17
|
|
f/mm:
|
10, 20, 20, 25
|
|
Test IK Level:
|
IK08 To IK11
|
|
Energy/J:
|
5 ±5%, 10 ±5%, 20 ±5%, 50 ±5%
|
Applications:
With a third-lab calibration certificate and originating from China, the PG-TA model is a reliable choice for your testing needs. You can order just one set of this Metal Impact Test Machine, with a price range from USD1500-USD5000 per set. Payment terms include T/T, Western Union, and MoneyGram, with a delivery time of 25 working days. Each piece of equipment is packed in a wooden case for added protection during shipping.
The l/mm of the PG-TA model depends on your specific needs, while the R/mm is available at 25, 50, 50, and 50. For energies exceeding 2J, a swing pipe made of steel (with a length of 1000mm, outer diameter of 15.9mm, and thickness of 1.5mm) is included. The r/mm is available at 6, -, 10, and 17. The input required for this equipment is 220V/50Hz.
Whether you're using this Impact Test Equipment for research and development, quality control, or other purposes, the PG-TA model from Pego Tester is sure to meet your needs. So why wait? Invest in this reliable and top-of-the-line Metal Impact Testing Equipment today!
Support and Services:
Impact Test Equipment provides top-quality technical support and services to ensure that customers receive the best possible experience when using our products. Our team of experts is always ready to answer any questions you may have regarding the product's capabilities, features, or applications. We also provide on-site installation and training services to help ensure that your equipment is set up correctly and that your staff is trained on how to use it. Additionally, we offer fast and reliable repair and maintenance services to keep your equipment working at optimal performance. If you encounter any issues or need assistance with your Impact Test Equipment product, please don't hesitate to contact our technical support team for help.
Packing and Shipping:
Product Packaging for Impact Test Equipment:
The Impact Test Equipment will be packaged securely to ensure safe delivery to our customers. The product will be placed in a sturdy cardboard box with proper cushioning and padding to prevent any damages during transportation.
Shipping:
The Impact Test Equipment will be shipped via a reputable courier service to ensure safe and timely delivery. Once the order is processed, customers will receive a tracking number to track their shipment. Please ensure that the delivery address provided is accurate to avoid any delays or issues with delivery.
FAQ:
Q: What is the brand name of this equipment?
A: The brand name of this equipment is Pego Tester.
Q: What is the model number of this equipment?
A: The model number of this equipment is PG-TA.
Q: Is this equipment certified?
A: Yes, this equipment comes with a third-lab calibration certificate.
Q: Where is this equipment manufactured?
A: This equipment is manufactured in China.
Q: What is the minimum order quantity for this equipment?
A: The minimum order quantity for this equipment is 1 set.
Q: What is the price range for this equipment?
A: The price range for this equipment is between USD1500-USD5000 per set.
Q: What are the payment terms for this equipment?
A: Payment terms for this equipment include T/T, Western Union, and MoneyGram.
Q: What is the delivery time for this equipment?
A: The delivery time for this equipment is 25 working days.
Q: How is this equipment packaged for delivery?
A: Each set of equipment is packed in a wooden case for safe delivery.
