Reference Standard: | IEC60335-2-14 ,IEC61032 | Material: | Stainless Steel, Insulating Material |
---|---|---|---|
Application: | Verify The Accessibility To Hazardous Parts Protected By Enclosure | Shipment: | By DHL Or Fedex |
Diameter Of Stop Face: | 125mm | Length Of Finger: | 100mm |
Highlight: | IEC60335-2-14 Test Probe,125mm Circular Stop Face Test Probe,Kitchen Machines Test Probe |

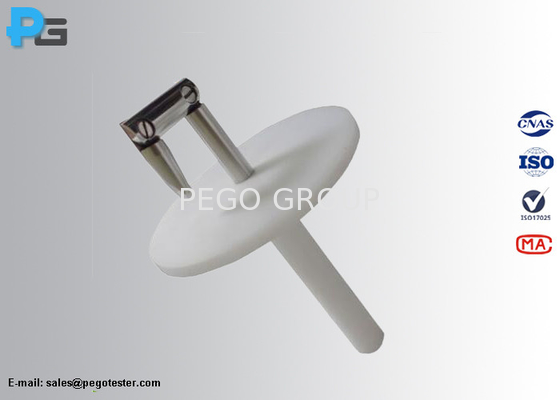

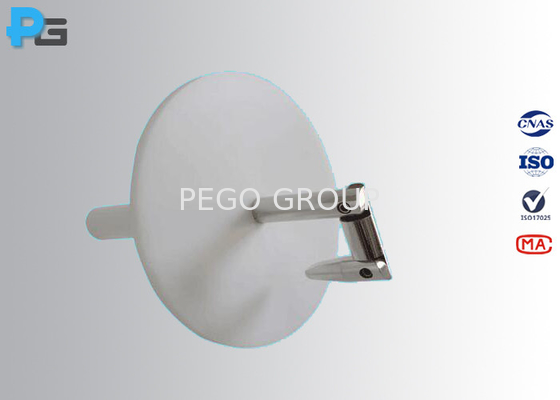

IEC60335-2-14 Similar Test Probe B with 125mm Circular Stop Face for Verifying the Stability and Mechanical Hazards of the Kitchen Machines
1. Introduction
Similar test probe B is designed to meet the test requirements of IEC60335-2-14 clause 20.2, the finger part except the length is same as the test probe B of IEC61032, but having a circular stop face with a diameter of 125mm, and the distance between the tip of the test finger and the stop face being 100mm. The finger part has two active joints that can bend in 90 degrees and made of stainless steel, the handle made of insulating material can customized with terminals or M6 threaded hole to work with force gauge to apply force.
2. Specification
Model | PG-TPB-2 |
Jointed point size 1 | 30±0.2 |
Jointed point size 2 | 60±0.2 |
Length of finger | 100±0.2 |
Fingertip to baffle size | - |
Fingertip taper fillet | S4±0.05 |
Diameter of finger | Ф12 0 -0.05 |
Diameter of baffle | Ф125±0.2 |
Thickness of baffle | - |
A-A section diameter | - |
A-A section width | - |
Thruster | 10N optional |
Standard | IEC60335-2-14 |
3. Frequently Asked Questions
1). How can we apply force during the test?
Pego: There are two methods for user to apply the force during the test: 1. User can choose the test probe with built-in thruster, the thruster is built-in the handle, just push the handle, the appropriate force can be applied. 2. The probe can work with a force gauge to apply force. The probe configured with a connector at the tail of the handle.
Normally, the recommended force applied to test is 10N, but in some product standards, the recommended force will be up to 50N.
2). How does the probe connect with a continuity indicating circuit?
Pego: The probe will come with a wire to connect with a continuity indicating circuit. User can create a continuity indicating circuit by themselves, or buy aN electrical indicator from Pego.
3). How to store and maintain the test probes in daily life?
Pego: The probes will come with a protective case, When not in use, place it in the case.
4). How do you prove that the probes meet the relative standards?
Pego: User can ask for the calibration certificate issued by ISO17025 authorized lab, but the price of the calibation certificate will be charged additionally.
