IEC60601-1 30mm Circular Plane for Push Test to External Enclosure of ME Appliance

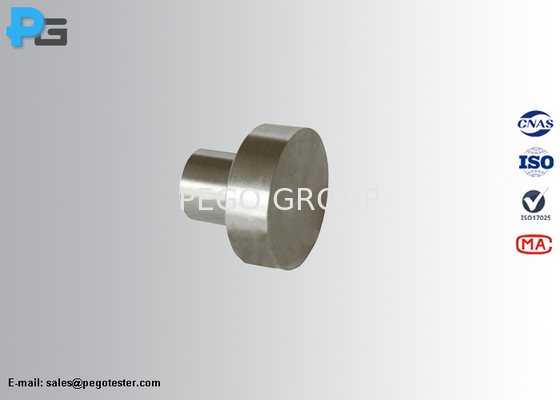

Large Image : IEC60601-1 30mm Circular Plane for Push Test to External Enclosure of ME Appliance

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-CP30

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD100~USD200
Packaging Details:	carton
Delivery Time:	in stock
Payment Terms:	T/T, PayPal

Contact Now

Detailed Product Description

Reference Standard:	IEC60950 Clause 4.2.4, IEC60601-1 Clause 15.3.2	Diameter Of Circular Plane:	30mm
Application:	To Verify The Rigidity Of Equipment's Enclosure By Applying A Steady Force Of 250N	Connector:	M6 Thread
Force Applied:	250N±10N (by Working With Force Gauge)	Shipment:	By DHL Or Fedex
Highlight:	IEC60601-1 Circular Plane , ME Appliance Circular Plane , 30mm Circular Plane

IEC60601-1 30mm Circular Plane for Push Test to External Enclosure of ME Appliance

1. Introduction

The 30mm circular plane is designed to meet the test requirements of IEC60950 clause 4.2.4 and IEC60601-1 clause 15.3.2. It’s made of stainless steel. The circular plane has a 30mm diameter surface and with M6 connector, so that to work with a foce gauge to apply a 250N±10N steady force to external enclosure of equipment having a mass of not more than 18KG.

2. Specification

Diameter of the plane surface	φ30mm
Connector	M6 thread
Material	Stainless steel
Force applied	250N±10N (by working with a force gauge)

IEC60601-1 30mm Circular Plane for Push Test to External Enclosure of ME Appliance 0

3. Frequently asked questions

1). How to apply the required force?

Pego: The circular plane should work with a force gauge to apply the force.

2). Does the circular plane provide the connector to connect with force gauge?

Pego: Yes, The back of the circular plane provides an M6 interface.
