Detailed Product Description
Reference Standard: IEC60601-1 Probe Kits: Standard Test Finger, Straight Unjointed Test Finger, Test Rod, Test Pin, Test Hook
Material: Stainless Steel, Insulating Material Application: Or Verifying The Openings Preventing The Entry Of The Standard Test Finger
Shipment: By DHL Or Fedex
Highlight:

IEC60601-1 Test Probe Kits

,

ME Equipment Test Probe Kits

IEC60601-1 Test Probe Kits for Verification to Openings in Enclosures of ME equipment​



1. Introduction

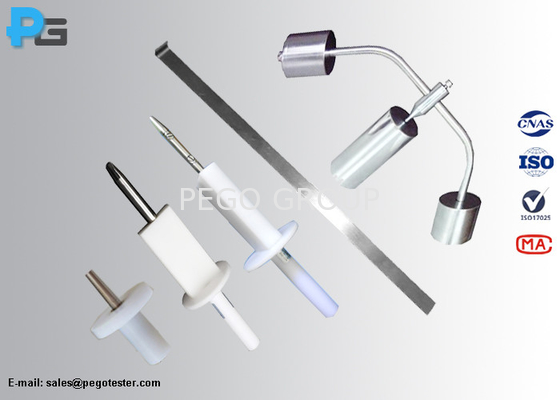

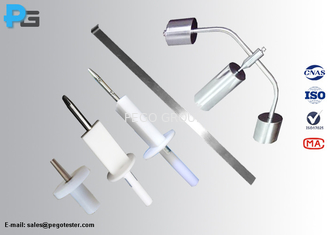

The test probe kits are meet the requirement of IEC60601-1, includes standard test finger, test pin, straight unjointed test finger, test hook and metal test rod, they are applied to verify the accessibility of living or mechanical hazardous parts and openings in enclosure of medical electrical equipment.





2. Specification



Name Figure number Parameter
Standard test finger (test probe B)

IEC60601-1 clause 5.9.2.1 and figure 6

IEC60950-1 figure 2A

IEC61032 figure 2

Purpose:for identifying the accessible parts of ME EQUIPMENT

Specification:

1). Diameter of dactylogryposis: Φ12mm

2). Length of dactylogryposis: 80mm

3). Diameter of baffle. Φ50mm

4). Length of baffle: 100mm

IEC60601-1 Test Probe Kits for Verification to Openings in Enclosures of ME equipment 0

Straight unjointed test finger with 30N force

IEC60601-1 clause 5.9.2.1

IEC60950-1 clause 2.1.1.1

Purpose: for verifying the openings preventing the entry of the standard test finger

Specification: the size is as same as test probe B, but without joints, 30N force is applied.

IEC60601-1 Test Probe Kits for Verification to Openings in Enclosures of ME equipment 1

Test Hook

IEC60601-1 figure 7

IEC60065 clause 9.1.7 and figure 4

Purpose: for verifying the openings of ME EQUIPMENT in question

Specification:

1). Length: 180mm

2). Width: 8mm

3). Length of hook: 5mm

4). Thickness: 1mm

5). Material: SUS304 stainless steel

IEC60601-1 Test Probe Kits for Verification to Openings in Enclosures of ME equipment 2

Test Rod IEC60601-1 clause 8.4.2 d)

Purpose: for verifying the opening of internal parts that can be touched

Specification:

1). diameter: 4mm

2). Length: 100mm

3). Material: metal rod, nylon handle

4). Recommend force applied: 0N, 10N

Test pin (test probe 13)

IEC60601-1 clause 8.4.2 d) and figure 8

IEC60950-1 figure 2B

IEC61032 figure 9

Purpose: for verifying the opening of internal parts that can be touched

Specification:

1). Diameter: Φ3mm (head), Φ4mm (tails)

2). Length of probe: 15mm

3). Diameter of baffle: Φ25mm

4). Thickness of baffle: 4mm

IEC60601-1 Test Probe Kits for Verification to Openings in Enclosures of ME equipment 3

Ball Pressure Test Apparatus IEC60601-1 clause 8.8.4.1 and figure 21

Purpose: for verifying the insulation of ME EQUIPMENT resistance to heat

Specification:

1). Ball diameter: 5mm (R2.5mm)

2). Test Pressure: 20N±0.2N

3). Material: Stainless Steel

4). Sample supportor: Φ50mm-length 100mm, cylinder sharp (configure with a hole to insert thermocouple)

IEC60601-1 Test Probe Kits for Verification to Openings in Enclosures of ME equipment 4





3. Frequently Asked Questions

1). How can we apply force during the test?

Pego: There are two methods for user to apply the force during the test: 1. User can choose the test probe with built-in thruster, the thruster is built-in the handle, just push the handle, the appropriate force can be applied. 2. The probe can work with a force gauge to apply force. The probe configured with a connector at the tail of the handle.

Normally, the recommended force applied to test is 10N, but in some product standards, the recommended force will be up to 50N.



2). How does the probe connect with a continuity indicating circuit?

Pego: The probe will come with a wire to connect with a continuity indicating circuit. User can create a continuity indicating circuit by themselves, or buy aN electrical indicator from Pego.



3). How to store and maintain the test probes in daily life?

Pego: The probes will come with a protective case, When not in use, place it in the case.

 IEC60601-1 Test Probe Kits for Verification to Openings in Enclosures of ME equipment 5



4). How do you prove that the probes meet the relative standards?

Pego: User can ask for the calibration certificate issued by ISO17025 authorized lab, but the price of the calibation certificate will be charged additionally.
