Test Fixture With Three-Pointed Metallic Supports For Heating Test Of Electrical Irons

Large Image : Test Fixture With Three-Pointed Metallic Supports For Heating Test Of Electrical Irons

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-TF1005

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD500~USD1000
Packaging Details:	carton
Delivery Time:	15 business days
Payment Terms:	T/T, PayPal

Contact Now

Detailed Product Description

Reference Standard:	IEC60335-2-3 Clause 11.2 And UL1005 Clause 26.6&figure 26.1	Metallic Supports:	φ6mm-H100mm
Silver Disc:	φ10mm-THK1mm	Material Of Supporting Base:	Insulation Bakelite
Application:	For Heating Test Of Electrical Irons	Shipment:	By DHL Or Fedex
Highlight:	Three-Pointed Metallic Supports Test Fixture , Electrical Irons Test Fixture , Heating Test Test Fixture

Test Fixture with Three-Pointed Metallic Supports

1. Introduction

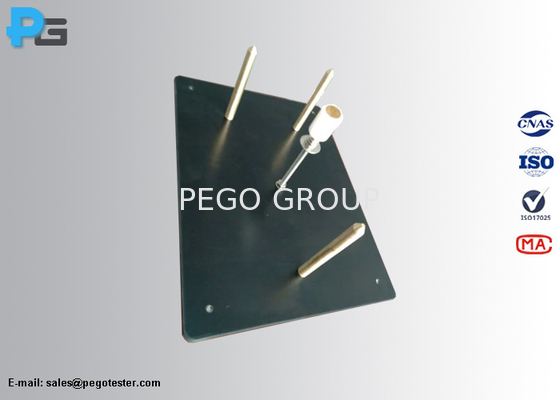

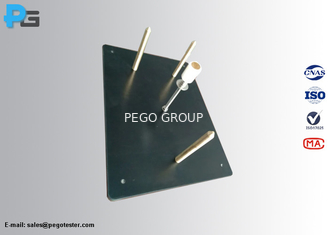

The test fixture with three-pointed metallic supports is designed to meet the test requirement of IEC60335-2-3 clause 11.2 and UL1005 clause 26.6&figure 26.1 for heating test of electrical irons. The supports have a height of 100mm. The soleplate of the irons in the horizontal position placed on three pointed metallic supports to tightly contact with silver disc, then transfer heat to the thermocouple through the silver disc for testing.

2. Specification

Material of supporting base	Insulation Bakelite
Metallic supports	Height: 100mm Diameter: 6mm Radius at the point: 1.6mm
Silver disc	1). 10mm in diameter, 1mm in thickness 2). A K type thermocouple is to be soldered at the center of the silver disc. The disc is to be fixed to the end of the ceramic pipe
Structure	The position of the metallic supports and thermocouple can be adjusted
