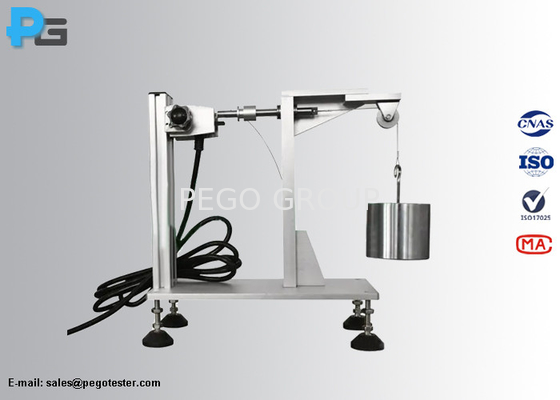

Plug Pins Fixation Verifying Test Apparatus For Torque And Pull Force Tests On Plug Pins

Plug Pins Fixation Verifying Test Apparatus For Torque And Pull Force Tests On Plug Pins
Plug Pins Fixation Verifying Test Apparatus For Torque And Pull Force Tests On Plug Pins

Large Image :  Plug Pins Fixation Verifying Test Apparatus For Torque And Pull Force Tests On Plug Pins

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-FVA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Delivery Time: 15 business days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Reference Standard: IEC60335-1 Clause 22.3 And IEC60065 Clause 15.4.3 (b And C) Pull Force: 40N, 50N, 54N, 70N
Torque Force: 0.4N.m Test Time: 1min
Pin Fixture: Customizable Shipment: By Express
Highlight:

Plug Pins Fixation Verifying Test Apparatus

,

Plug Pins Pull Force Tests Apparatus

,

Plug Pins Torque Force Tests Apparatus

Plug Pins Fixation Verifying Test Apparatus for Torque and Pull Force Tests on Pins



1. Introduction

The plug pins fixation verifying test apparatus is designed according to IEC60335-1 clause 22.3 and IEC60065 clause 15.4.3 (b and c) , it can perform both torque test and pull force test to verify the firmness of plug pins. The test apparatus should work with a heating cabinet when perform the pull force test.



2. Parameters

Number of test station 1
Weights for pull force test 40N*1,20N*1,10N*1,4N*1
Torque test 0.4N.m (Realized by 50N weight and R8mm torque wheel)
Test time 1min (manual control)
Pin fixture customizable (designed according the plug)
Dimension and weight W350mm*H250mm*D2500mm, 15KG
Working condition 0-40℃,30%-90%R.H.



IEC60065 Table 17 Pull force on pins

Ratings of the equivalent plug type Number of poles Pull force (N)
≥10A, 130/250V

2

3

40

50
>10≤16A, 130/250V

2

3

50

54
>10≤16A, 440V

3

>3

54

70

Tag:

torque testing equipment,

electrical plug tester,

electrical outlet tester
