IEC60884-1 Figure 30 Plug Pins Fixation Verifying Test Apparatus (by a Pull Force)

IEC60884-1 Figure 30 Plug Pins Fixation Verifying Test Apparatus (by a Pull Force)
IEC60884-1 Figure 30 Plug Pins Fixation Verifying Test Apparatus (by a Pull Force) IEC60884-1 Figure 30 Plug Pins Fixation Verifying Test Apparatus (by a Pull Force)

Large Image :  IEC60884-1 Figure 30 Plug Pins Fixation Verifying Test Apparatus (by a Pull Force)

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-FVA884
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Delivery Time: 15 business days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Reference Standard: IEC60884-1:2013 Figure 30 And Clause 24.10 Pull Force: 40N, 50N, 54N, 70N, 80N, 100N
Test Time: 1min Plug Fixture: Customizable
Shipment: By Express
Highlight:

Plug Pins Fixation Verifying Test Apparatus

,

IEC60884-1 Figure 30 Test Apparatus

,

IEC60884-1 Figure 30 Plug Socket Tester

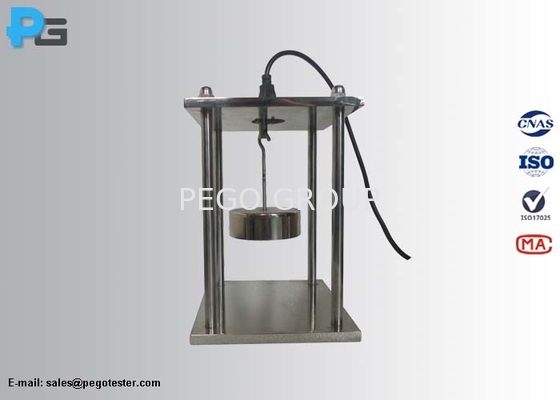

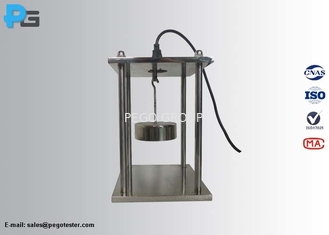

IEC60884-1 Figure 30 Plug Pins Fixation Verifying Test Apparatus (by a Pull Force)



1. Introduction

The apparatus is designed according to IEC60884-1:2013 figure 30 and clause 24.10 for verifying the fixation of pins in the body of the plug. The apparatus should work with a heating cabinet.

The plug is placed on a rigid steel plate prrovided with holes suitable for the plugs of the plug, the distances between the centres of the holes shall be the same as the distance between centres of the circle circumscribe around the cross-sectional area of each pin in the standard sheet of the plug. The plug is positioned on the steel plate in such a way that the centres of the circles circumscribing the pins coincide with the centres of the holes. A pull P equal to the maximum withdrawal force as give in table 16 is applied for 1 min on each pin in turn, in the direction of the longitudinal axis of the pin.





2. Parameters

Number of working station 1

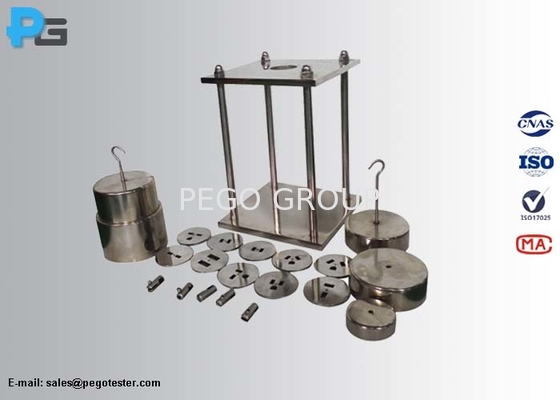

Weights 50N*1, 20N*2, 30N*1, 4N*1 (Can realize the withdrawal force specified in table 16 of standard IEC 60884-1)
Plug clamps As per the standard sheet of plug (user should provide the standard sheet of the plugs desired to test)



 IEC60884-1 Figure 30 Plug Pins Fixation Verifying Test Apparatus (by a Pull Force) 0
