IEC 60884-1 Figure 38 Compression Test Apparatus For Verification Of Resistance To Heat

IEC 60884-1 Figure 38 Compression Test Apparatus For Verification Of Resistance To Heat
IEC 60884-1 Figure 38 Compression Test Apparatus For Verification Of Resistance To Heat IEC 60884-1 Figure 38 Compression Test Apparatus For Verification Of Resistance To Heat

Large Image :  IEC 60884-1 Figure 38 Compression Test Apparatus For Verification Of Resistance To Heat

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-CTA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Delivery Time: 15 business days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Reference Standard: IEC60884-1 Clause 25.4 And Figure 38 Configuration: Moving Jaw And Fixed Jaw, Guide And Weight
Test Time: 60 Min Application: Verify The Compression Resistance Performance In Heating Of Cover Of Moveable Socket-outlet, Electrical Accessories And Surface Type Mounting Box
Shipment: By Express
Highlight:

Resistance to heat Compression Test Apparatus

,

IEC 60884-1 Compression Test Apparatus

,

Test Apparatus For Heat Resistance

IEC 60884-1 Figure 38 Compression Test Apparatus for Verifying Cover of Moveable Socket-Outlet, Electrical Accessories and Surface Type Mounting Box Resistance to Heat



1. Introduction

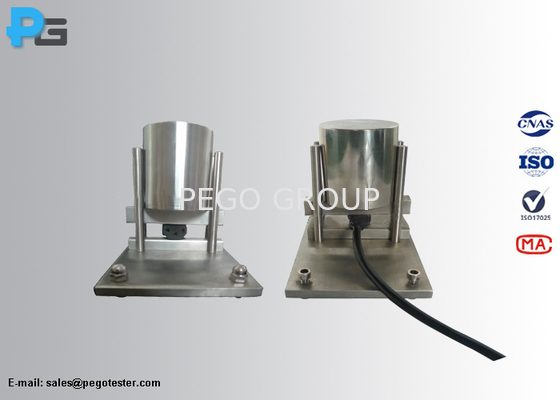

Apparatus for compression test is designed according to IEC60884-1 clause 25.4 and figure 38, it is applied to verification the compression resistance performance in heating of cover of moveable socket-outlet, electrical accessories and surface type mounting box. The test apparatus shall work with oven, the specimen should be pre-heated by the oven. 20N force is applied to specimen via the jaws for 1 hour, and the specimen can not be damage.





2. Parameters

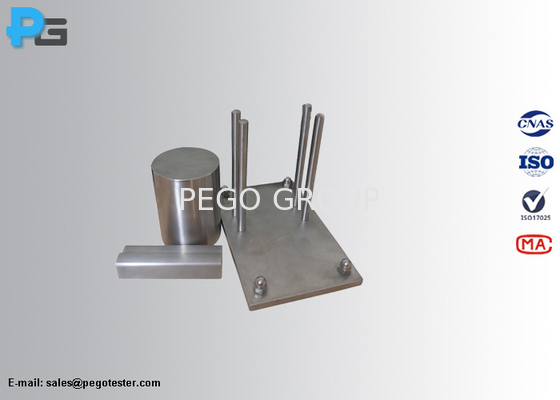

Configuration Moving jaw and fixed jaw (60mmx15mm), guide and weight
Jaws

Cylindrical sharp: R25mm

Round corner: R2.5mm

Width: 15mm
Weight 20N
Test temperature 80℃±2℃
Test time 25±5°for 1 min (cover of moveable socket-outlet), 80±2°for 1 hour (electrical accessories and surface-type mounting box)



  IEC 60884-1 Figure 38 Compression Test Apparatus For Verification Of Resistance To Heat 0
