IEC60320-1 Appliance Couplers Maximum And Minimum Withdrawal Force Testing Equipment

Large Image : IEC60320-1 Appliance Couplers Maximum And Minimum Withdrawal Force Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-WDFA2

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	woodencase
Delivery Time:	20 business days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Reference Standard:	IEC60320-1 Figure 3 And Figure 4 And Clause 16	Application:	For Verifying The Maximum And Minimum Withdrawal Force Of Appliance Inlet/plug Connector
Maximum Force:	50N, 60N	Minimum Force:	1.5N, 2N
Heating Temperature:	R.T.~180℃	Working Power:	AC220V/50Hz
Highlight:	Maximum Withdrawal Force Testing Equipment , IEC60320-1 Appliance Couplers Testing Equipment , Appliance Couplers Testing Equipment

IEC60320-1 Appliance Couplers Maximum and Minimum Withdrawal Force Testing Equipment / Apparatus for Checking Withdrawal Force of Appliance Couplers

1. Introduction

he appliance couplers withdrawal force testing equipment is designed according to IEC60320-1 figure 3 and figure 4 and clause 16 for verification of the maximum withdrawal force of appliance inlet/plug connector, the minimum withdrawal force is verified by inserting the test pin gauge to each individal connector/appliance. The equipment consists of control cabinet, mounting plate, heating device, appliance inlets/plug connector, mass hook, supplementary mass and principal mass. The height of the frame of the device is 550mm, and the distance between the axes of the two columns is 150mm. The appliance inlet / plug connect made of hardened steel with roughness not exceeding 0.8mm.

2. Specification

Multi-pin gauge (for maximum withdrawal force test)	As per the standard sheet of connector/appliance outlet
Single pin gauge (for minimum withdrawal force test)	As per the standard sheet of connector/appliance outlet
Heating temperature	R.T.~180℃ (pre-settable)
Mass configuration (maximum withdrawal force)	50N, 60N
Mass configuration (minimum withdrawal force)	1.5N1, 2N1
Working power	AC220V±10%/50-60Hz
Working condition	Temperature: 5-35℃, R.H.: 30%~90%
Dimension and weight	W400mmD300mmH800mmm/40KG

3. Table 5- Maximum and Minimum Withdrawal Forces

Type of connetor/appliance outlet	Withdrawal force (N)
Type of connetor/appliance outlet	16.2 Multi-pin gauge Maximum	16.3 Single-pin gauge Minimum
0.2A, 2.5A, 6A and 10A	50	1.5
16A	60	2

4. Figure

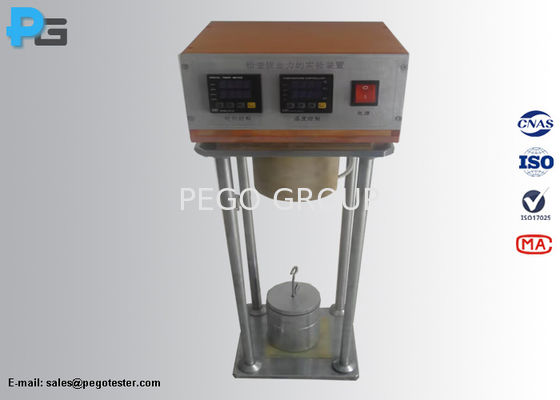

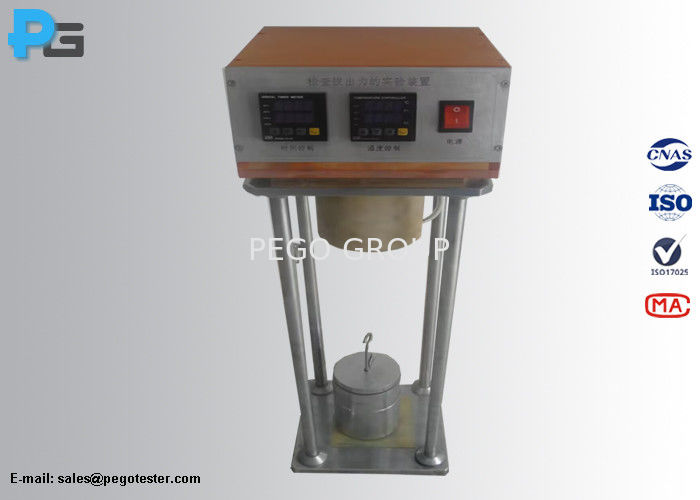

IEC60320-1 Appliance Couplers Maximum And Minimum Withdrawal Force Testing Equipment 0
