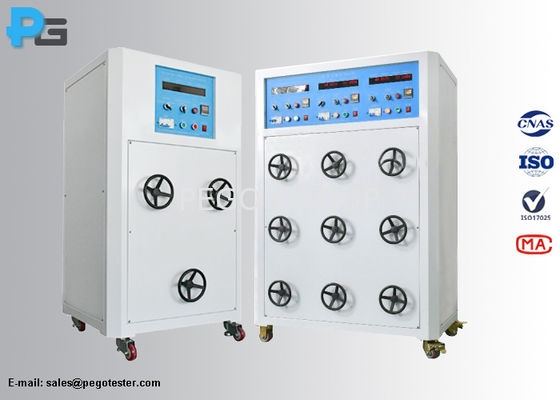

Resistive Inductive and Capactive Power Load Cabinet 300V/30A for Plug Socket Coupler and Switches Testing

Resistive Inductive and Capactive Power Load Cabinet 300V/30A for Plug Socket Coupler and Switches Testing
Resistive Inductive and Capactive Power Load Cabinet 300V/30A for Plug Socket Coupler and Switches Testing

Large Image :  Resistive Inductive and Capactive Power Load Cabinet 300V/30A for Plug Socket Coupler and Switches Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-PLC30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 30 business days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Reference Standard: IEC60884-1, IEC60669-1 Application: For Testing Plug, Socket, Coupler, Switches
Working Stations: 1, 2, 3 For Option Output Voltage: 0-300V (customizable)
Output Current: 0-30A (customizable) Load Type: Resistive, Inductive, Capactive
Capacitive Load: 70μF, 140μF, 7.3μF Working Power: AC220±10%, 50Hz
Highlight:

Resistive Power Load Cabinet

,

300V/30A Power Load Cabinet

,

Inductive Power Load Cabinet

Resistive Inductive and Capactive Power Load Cabinet 300V/30A for Plug Socket Coupler and Switches Testing



1. Introduction

Power Load cabinet is a support equipment to work with plug socket-outlet and switch life testing machine, and meet the test requirements of IEC60884-1 clauses 20 and 21, and IEC60669-1 clauses 19.1 and 19.2. This power load cabinet can switch to resistive output, capacitive output (fluorescent lamp load) and inductive output. Equip with 4 casters to make the cabinet moves easily. The load cabinet adopts strong wind convection cooling.



2. Specification

Model PG-PLD601 PG-PLD303
Control unit Button control+meter display
Working station 1 3
Output voltage

Range: 0-300V

Accuracy: ±0.5%

Range: 0-300V

Accuracy: ±0.5%
Output current

Range: 0-60A

Accuracy: ±0.5%

Range: 0-30A

Accuracy: ±0.5%
Power factor

Range: 0.3-0.99

Accuracy: ±0.5%

Range: 0.3-0.98

Accuracy: ±0.5%
Load type Resistive, inductive, capactive (switchable)
Capacitive load 70μF, 140μF, 7.3μF selectable
Test times 0-999999 (presetable)
Load capacity 1*25KVA 3*10KVA
Over limit alarm Output current upper limit: 60A, automatically cut off when over 62A Output current upper limit: 30A, automatically cut off when over 32A
Dimension W800mm*D1000mm*H1600mm W1100mm*D800mm*H1800mm
Weight Approximate 300KG Approximate 400KG
Working power Input AC220V/50Hz (single phase) Input AC 380V/50Hz (3 phases 4 wires)
Working condition

Atmospheric pressure: 80~106kpa

Ambient temperature: 5~40°C

Relative humidity: (20~80)%RH

No violent shaking, vibration, electromagnetic interference, dust, explosive and corrosive gas, good heat dissipation
