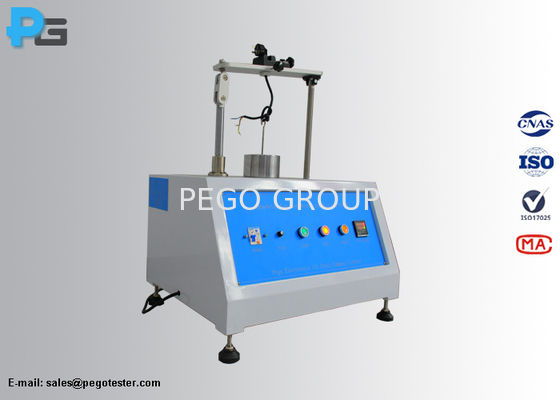

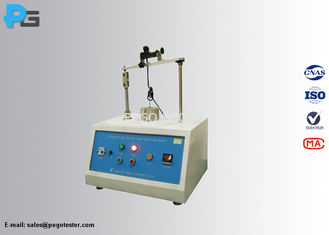

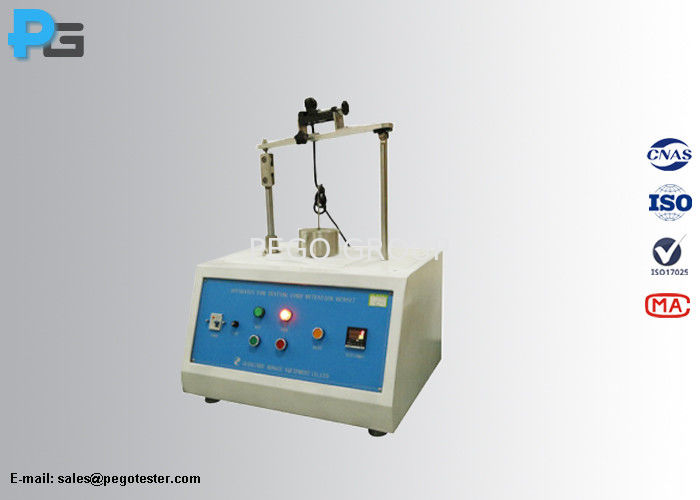

IEC60884-1 Figure 20 Apparatus For Cord Retention Testing

IEC60884-1 Figure 20 Apparatus For Cord Retention Testing

1. Introduction

Cord retention testing apparatus is designed according to the IEC60884-1 clause 23.2 figure 20. It is used to check the effectiveness of the retention of the cable by the cord anchorage. It’s applied to the removable plug, removable mobile socket, non-rewirable plug, rewirable mobile socket. the flexible cable is subjected 100 times to a pull of 50N/60N/80N/100N, and the pulls are applied practically without jerks 1 time/s.

2. Specification

3. The according tensile force of the flexible cable

3. Figure

5. Frequently Asked Questions

1). Will you provide the on-site installation service?

Pego: Actually, the equipment will no need on-site installation service. The equipment will be shipped almost as a whole, user just need to make simple wiring connection when receive the goods.

2). What is the warranty period? and how can we get the after-sales service?

Pego: The warranty period is 12 months upon user receive the goods. 95% of after-sales problems can be solved by our engineer team through remote service. Customers will get a response within 24 hours in business day after reporting the problem. In our experience, most of the troublesome can be removed with the guidance of our engineer, only a small part of the troublesome are caused by parts failure, that is because we use the branded components, which have better performance and good reliability. If the parts damaged, we will a send a new for replace, the new parts will be charged for free within the warranty period. And also our eigneer team will teach how to replace the damaged parts.

3). Will the device come with test report?

Pego: Yes, the equipment can come with factory test report for free. But if you want the calibration certificate issued by an ISO17025 authorized laboratory, the calibration cost will be charged additionally, and lead time will be extended.
