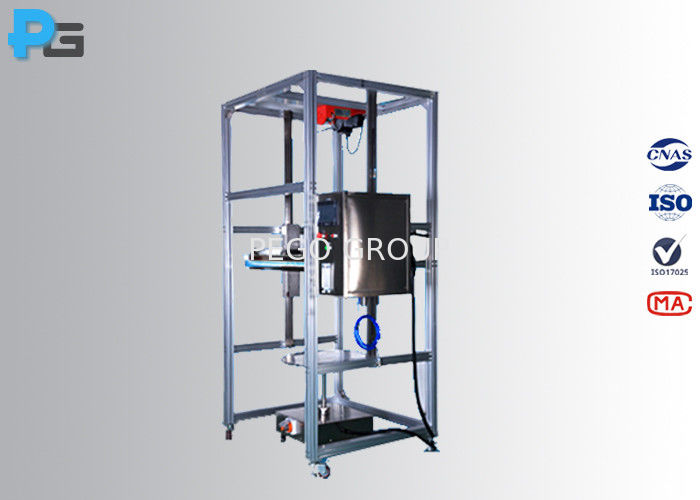

IEC60529 Ingress Protection Testing Machine for IPX1 and IPX2 Vertical Drip Test

1. Introduction

The IPX1 and IPX2 Ingress Protection Testing Machine is designed and manufactured according to IEC60529, IEC60598-1, GB4208, and GB7000.1 standards. It is suitable for the drip level waterproof test of outdoor electrical and electronic products, lighting products, and medical product shells. It is suitable for certification and testing agencies and manufacturers to conduct IPX1 and IPX2 waterproof inspections of products. This equipment uses PLC control, and a 7-inch color touch screen displays, controls, and sets the test program. Users can easily and simply reach the test conditions. The equipment is equipped with a precision glass rotor flowmeter, which controls the actual output flow through manual adjustment.

2. Standard

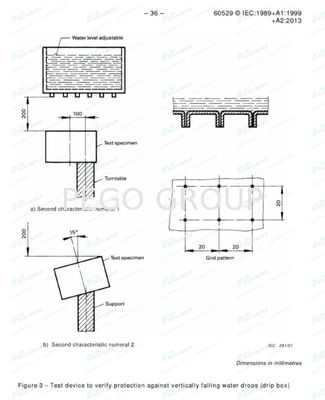

IEC60529 Degrees of protection provided by enclosures (IP Code) Figure 3

IEC60598-1 Luminaires - Part 1: General requirements and tests

ISO20653 Road Vehicles - Degrees of protection (IP-Code) - Protection of electrical equipment against foreign objects, water and access

3. Parameters

4. FAQ:

4.1 What parts does the ipx1 and ipx2 ingress protection testing machine consists of?

Pego: The ipx1 and ipx2 ingress protection testing machine consists of the control system, frame, drip board, needles, turntable, flowmeter and etc.

4.2 Will any replacement be deliveried together with the machine?

Pego: Yes, we have prepared extra 100pcs needle and one water filter for the machine.

4.3 Does the ipx1 and ipx2 ingress protection testing device have the air drying function?

Pego: Yes, the machine has the compressed air drying function. After the test is completed, the excess water in the drip box can be drained clean to avoid long-term accumulation of water and scaling to block the pinholes. But user need to provide the compressor themselves.

5. Figures
