IEC60529 Clause 14.2.3 and 14.2.4 Figure 4 Ingress Protection Testing Machine for IPX3 and IPX4 Waterproof Testing

Large Image : IEC60529 Clause 14.2.3 and 14.2.4 Figure 4 Ingress Protection Testing Machine for IPX3 and IPX4 Waterproof Testing

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-IPX34

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD5000~USD8000
Packaging Details:	woodencase
Delivery Time:	30 working days
Payment Terms:	T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

Standard:	IEC60529	Material:	Stainless Steel
Application:	Outdoor Lighting, Household Appliance,auto Parts	Type:	Frame Type, Box Type And Hand-held Type
Shippment:	By Sea	Warranty:	24 Months
Highlight:	IPX4 Waterproof Testing Machine , IEC60529 Waterproof Testing Machine , IPX3 Waterproof Testing Machine

IEC60529 Clause 14.2.3 and 14.2.4 Figure 4 Ingress Protection Testing Machine for IPX3 and IPX4 Waterproof Testing

1. Introduction

The IPX3 and IPX4 Ingress Protection Testing Machine, named as Oscillating Tube Waterproof tester, is designed and manufactured according to IEC60529 clause 14.2.3 and 14.2.4, IEC60598-1, GB4208, and GB7000.1 standards. It is suitable for waterproof testing of outdoor electrical and electronic products and lamp housings in all directions of rain and splashing. It is suitable for certification and testing agencies and manufacturers to test the waterproofness of products. This equipment can manually control the flow rate through the glass rotor or control the flow rate through the digital sensor. The 7-inch color touch screen displays, controls, and sets the test program. Users can easily and simply reach the test conditions. This tester is not equipped with a shower head, and the shower head needs to be equipped with equipment separately.

2. Standard

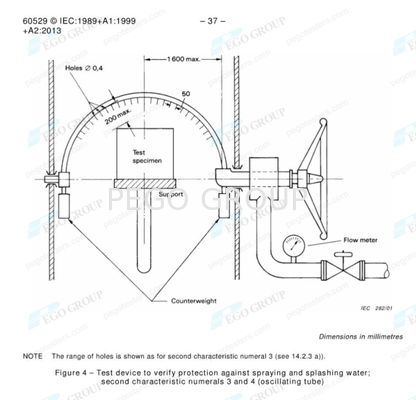

IEC60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.3 and clause 14.2.4 Figure 4
IEC60598-1 Luminaires - Part 1: General requirements and tests

3. Parameters

Model	IPX34C
Tube Radius	R1600	R1400	R1200	R1000	R800	R600	R400	R200
Outer size (LWH, m)	43.22.8	3.632.6	3.22.42.4	2.852.022.350	2.41.82	21.41.8	/	/
Delivery rate (L/min)	0~10	0~10	0~6	0~6	0~4	0~3	/	/
Diameter of turntable (mm)	Φ1000	Φ1000	Φ800	Φ800	Φ600	Φ600	/	/
Height of turntable (mm)	1750~2350	1750~2350	1350~1950	1300~1700	950~1550	550~1000	/	/
Aperture of nozzles (mm)	0.4
Inner diameter of tube	15mm
Water tank capacity	30L
Tube angle	120⁰ (IPX3), 360⁰ (IPX4) or user-defined
Rotation speed of tube	4s for 2120⁰, 12s for 2360⁰ or user defined
Material of tube	SUS304 stainless steel
Rotation speed of turntable	1~5r/min
Max. load-bearing capacity of turntable	50KG
Turntable rotation method	Forward or forward and reverse alternation
Protection	Electric leakage, hydropenia, short circuit
Working power	AC 220V/50Hz, 1KW (Live wire + neutral wire + protective ground wire)
Working conditions	5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure)
Accessories	Water filter1, test needle100, 3-core cable*1 (3m)
Water source	1).The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet. 2).The faucet is not more than 2 meters away from the equipment
Requirement for the site	The ground is level, the drainage is unobstructed, the ground and walls are waterproofed, and the floor drain or drainage ditch is set
Requirement for power switch	1). The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and this switch must be independent for the use of the equipment 2). It is forbidden to use knife switches or power sockets 3).The leakage protection air switch is not more than 2 meters away from the equipment

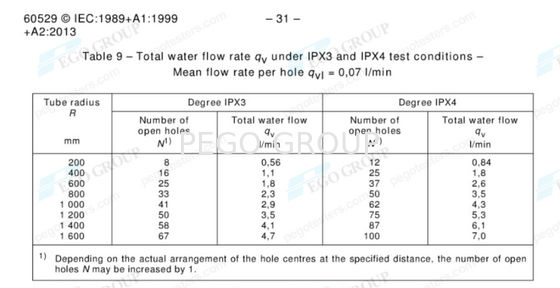

Radius (mm)	IPX3			IPX4
	Number of open holes	Total water flow		Number of open holes	Total water flow
	Number of open holes	L/min	L/h	Number of open holes	L/min	L/h
200	8	0.56	33.6	12	0.84	50.4
400	16	1.1	66	25	1.8	108
600	25	1.8	108	37	2.6	156
800	33	2.3	138	50	3.5	210
1000	41	2.9	174	62	4.3	258
1200	50	3.5	210	75	5.3	318
1400	58	4.1	246	87	6.1	366
1600	67	4.7	282	100	7.0	420

4. FAQ:

4.1 What parts does the ipx3 and ipx4 oscillating tube ingress protection testing machine consists of?

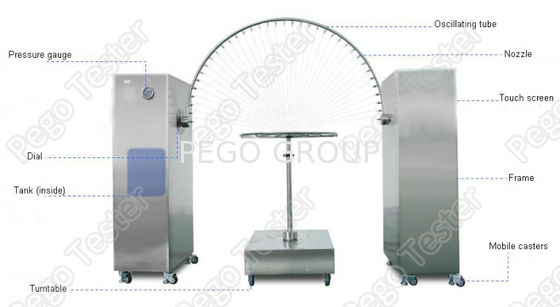

Pego: The ipx3 and ipx4 oscillating tube ingress protection testing machine consists of the control system, frame, swing tube, needles, turntable, flowmeter, pressure gauge and etc.

4.2 Will any replacement be deliveried together with the machine?
Pego: Yes, we have prepared extra 100pcs needle and one water filter for the machine.

4.3 How many pcs swing tube does it include?
Pego: We have the R200, R400, R600, R800, R1000, R1200, R1400 and R1600 swing tubes for selection. The size of the swing tube depends on the sample size of the specimen. Normally we will provide one piece swing tube, but it also can be specified by users.
