IEC60529 Clause 14.2.7 IPX7 Water Tank Ingress Protection Testing Machine

Large Image : IEC60529 Clause 14.2.7 IPX7 Water Tank Ingress Protection Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	PEGO Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-IPX7

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	woodencase
Delivery Time:	20-30 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Standard Conforms To:	IEC60529	Test IP Level:	IPX7
Material:	SUS304 Stainless Steel	Working Power:	AC220V/50Hz Or Customized
Test Water:	Pure Water Or Tap Water	Tank Size:	Customized As Per The DUT
Highlight:	Water Tank Ingress Protection Testing Machine , IPX7 Ingress Protection Testing Machine

IEC60529 Clause 14.2.7 IPX7 Water Tank Ingress Protection Testing Machine

1. Introduction

The IPX7 Water Tank Ingress Protection Testing Machine is designed and manufactured according to IEC60529 clause 14.2.7 and IEC60598-1, and is suitable for waterproof testing of outdoor electrical and electronic products and lighting products under water, and for waterproof testing of products by certification and testing agencies and manufacturers. The ipx7 water tank tester is made of stainless steel to make sure rustless for long time use, the waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect. The water-level on enclosure requires 0.15m above top and 1m above bottom, duration of the test is 30min.

2. Standard

IEC60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.7

IEC60598-1 Luminaires - Part 1: General requirements and tests

3. Parameters

Model	IPX7B-300	IPX7B-600	IPX7B-800	IPX7B-1000	IPX7B-1200
Inner size (mm)	3003001200	6006001200	100010001200	100010001200	120012001200
Outer size (mm)	3603601300	6606601300	8608601300	108010801300	128012801300
Highest water level (m)	1.2
Water level adjust way	Manual adjustment
Water level display	Stainless steel rule (accuracy: 1mm)
Material	Stainless steel

4. Figure

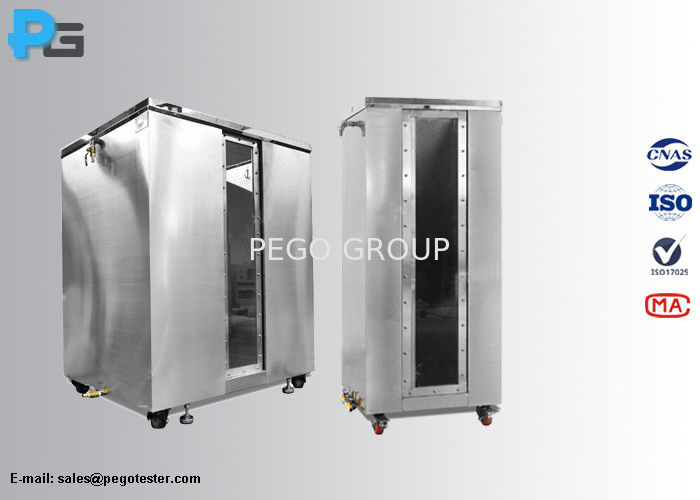

IEC60529 Clause 14.2.7 IPX7 Water Tank Ingress Protection Testing Machine 0
