IEC62368-1 Annex T.6 Pendulum and Vertical Drop Sphere Impact Test Equipment

IEC62368-1 Annex T.6 Pendulum and Vertical Drop Sphere Impact Test Equipment
IEC62368-1 Annex T.6 Pendulum and Vertical Drop Sphere Impact Test Equipment

Large Image :  IEC62368-1 Annex T.6 Pendulum and Vertical Drop Sphere Impact Test Equipment

Product Details:
Place of Origin: China
Brand Name: Pego Tester
Certification: Third-lab calibration certificate
Model Number: PG-IPT
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1500-USD5000/set
Packaging Details: Each packed in a wooden case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Standard: IEC60065 Relaese Mode: Motor-driven
Material: Stainless Steel Fall Height: 0-1000mm
Warranty: 12 Months Shipment: By Sea Or Air
Highlight:

IEC62368-1 Pendulum Impact Test Equipment

,

Vertical Drop Sphere Impact Test Equipment

,

Annex T.6 Pendulum Impact Test Equipment

IEC62368-1 Annex T.6 Pendulum and Vertical Drop Sphere Impact Test Equipment

1. Introduction

The pendulum and vertical sphere impact test equipment is designed and manufactured according to the requirements of IEC60601-1 clause 15.3.3, IEC60950-1 clause 4.4.5 and Figure 4A, IEC60598-1 clause 4.13.4, IEC62368-1 Appendix clause T.6 and Figure T.1, IEC61010-1 clause 8.2 and Figure 10. Different steel balls can be configured according to different standard requirements. The equipment can provide both pendulum sphere impact and vertical drop sphere impact. This tester uses the principle of electromagnet attraction to attract various steel balls, and releases or attracts the test steel balls through the magnetic release or attraction generated by the on and off power of the electromagnet to achieve drop ball impact. The pendulum ball is raised by a steel rope, and the impact energy generated by the height difference is quantified to provide the pendulum ball impact energy required for the test. The default configuration of the drop ball impact tester is Φ50mm steel ball, and the Φ50.8mm steel ball required by the UL standard is optional. Because stainless steel balls are non-magnetic, the configured steel balls are bearing steel balls. Please pay attention to grease them for maintenance to avoid rust.



2. Standard

IEC60601-1:2020 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance clause 15.3.3

IEC60950-1Information technology equipment – Safety –Part 1: General requirements clause 4.4.5 and figure 4A

IEC62368-1 Audio/video, information and communication technology equipment –Part 1: Safety requirements Annex T.6and Figure T.1

IEC60598-1 Luminaires – Part 1: General requirements and tests Clause 4.13.4

IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance clause 8.2. and figure 10



3. Parameters

Power supply AC 220V, 50Hz
Max. mass of sphere 5kg
Sphere Ø50mm
Fall height About 1900mm
Drop steel ruler 1500mm (optional)



4. Figure

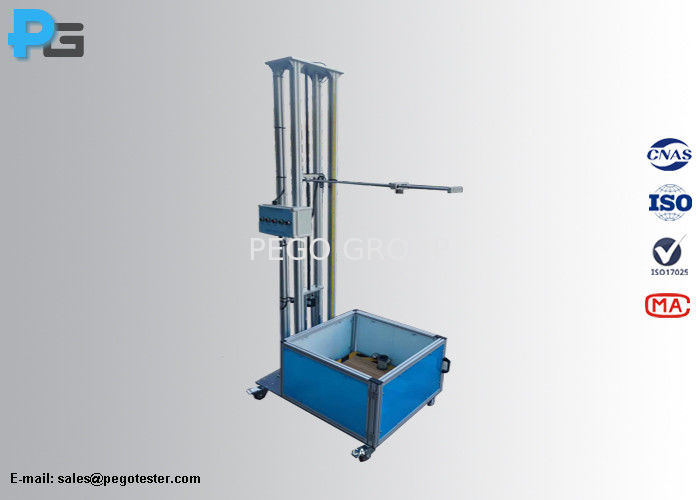

  IEC62368-1 Annex T.6 Pendulum and Vertical Drop Sphere Impact Test Equipment 0
