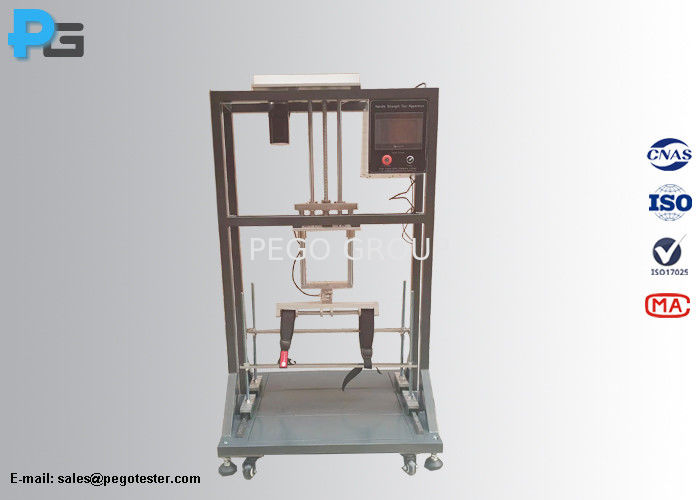

IEC61010-1 Clause 7.5.2 Electrical Safety Testing Grip Strength Testing Equipment

Large Image : IEC61010-1 Clause 7.5.2 Electrical Safety Testing Grip Strength Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	PEGO Group
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-HST

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	woodencase
Delivery Time:	15 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Standard:	IEC61010-1	Application:	Electrical Safety Testing
Test Specimen:	Grip Or Handle	Force Applied:	3 Times Or 2 Times The Weight Of The Equipment
Test Time:	60s	Working Power:	220V/50Hz
Highlight:	Electrical Safety Testing Grip Strength Equipment , IEC61010-1 Electrical Safety Testing Equipment , IEC61010-1 Grip Strength Testing Equipment

IEC61010-1 Clause 7.5.2 Electrical Safety Testing Grip Strength Testing Equipment

1. Introduction

The grip strength testing equipment is designed to meet the test requirement of IEC62368-1-2018 clause 8.8, GB9706.1-2007 clause 21, IEC60601-1:2020 clause 9.4.4, GB9706.1-2007 clause 21 and IEC61010-1 clause 7.5.2. It’s applied to test the strength of handle or grip for lifting or carrying the equipment.

2. Standard

IEC62368-1:2018 Audio/video, information and communication technology equipment Part 1: Safety requirements Clause 8.8

IEC60601-1:2020 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance Clause 9.4.4

IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance Clause 7.5.2

3. Parameters

Power supply	AC 220V/50Hz
Control system	7 inch touch screen
Loading time	0-9999min0-59s
Holding time	0-9999min-0-59s
Range of Tention	1-200kg
Loading Grips	IEC60601: about 70mm IEC61010-1: about 70mm IEC52368: about 75mm

4. Figure
