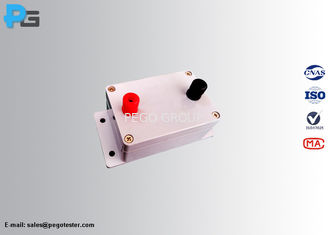

IEC61010-1 Clause 6.3.1 Figure A.3 Electrical Safety Testing Current Measuring Circuit for Electrical Burns at High Frequencies

Large Image : IEC61010-1 Clause 6.3.1 Figure A.3 Electrical Safety Testing Current Measuring Circuit for Electrical Burns at High Frequencies

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-lab Calibration Certificate
Model Number:	PG-A3

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD100-USD300
Packaging Details:	carton box
Delivery Time:	3 working days
Payment Terms:	T/T
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Standard:

IEC61010-1

Application:

Electrical Safety Testing

Highlight:

IEC61010-1 Electrical Safety Test Equipment

High Frequency Electrical Safety Test Equipment

IEC61010-1 Clause 6.3.1 Figure A.3 Electrical Safety Testing Current Measuring Circuit for Electrical Burns at High Frequencies

1. Introduction

The Measuring Circuits for Touch Current for Electrical Burns at High Frequencies is designed and manufactured according to the requirements of IEC60990 figure 3 and IEC61010-1 clause 6.3.1 and Figure A.3.

2. Standard

IEC60990 Methods of measurement of touch current and protective conductor current Figure 3

IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance Clause 6.3.1 and Figure A.2

3. Parameters

IEC60990	IEC61010-1	Parameters
RS	R1	1500Ω±5%
RB	R2	500Ω±5%
CS	C1	0.22μF±10%
Voltage meter	Voltage meter	Provided by user

4. Figure
