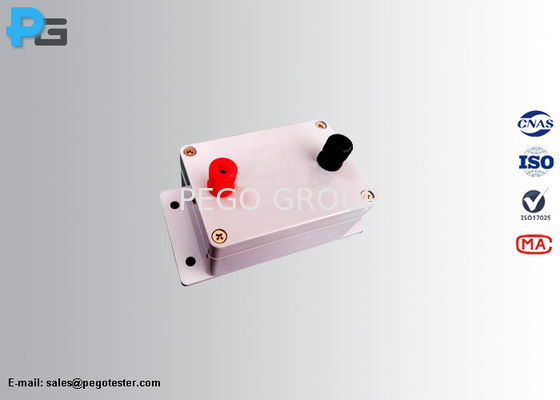

IEC61010-1 Clause 6.3.1 Figure A.4 Electrical Safety Testing Current Measuring Circuit for Wet Location

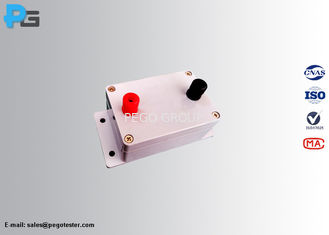

Large Image : IEC61010-1 Clause 6.3.1 Figure A.4 Electrical Safety Testing Current Measuring Circuit for Wet Location

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-lab Calibration Certificate
Model Number:	PG-A4

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD100-USD300
Packaging Details:	carton box
Delivery Time:	3 working days
Payment Terms:	T/T
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Standard:

IEC61010-1

Application:

Electrical Safety Testing

Highlight:

Electrical Safety Testing Current Measuring Circuit

Wet Location Electrical Safety Test Equipment

IEC61010-1 Clause 6.3.1 Figure A.4 Current Measuring Circuit for Wet Location

1. Introduction

The Measuring Circuits for Touch Current for Wet Location is designed and manufactured according to the requirements of IEC61010-1 clause 6.3.1 and Figure A.4.

2. Standard

IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance Clause 6.3.1 and Figure A.4

3. Parameters

R1	375Ω±5%
R2	500Ω±5%
C1	0.22μF±10%
Voltage meter	Provided by user

4. Figure
