IEC61010-1 Clause 6.8.3.3 EMC Tester Impulse Voltage Generator with 12KV Output Voltage

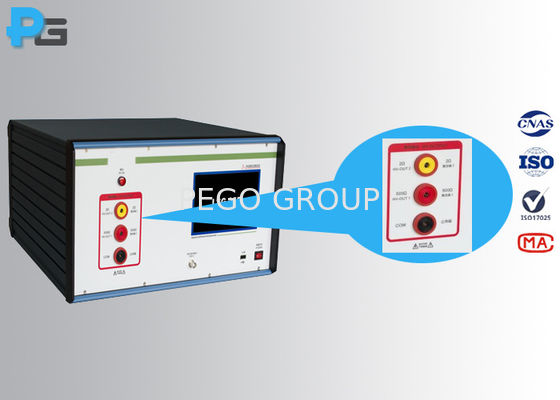

Large Image : IEC61010-1 Clause 6.8.3.3 EMC Tester Impulse Voltage Generator with 12KV Output Voltage

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	LSG-255

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD3500~USD5500
Packaging Details:	carton
Delivery Time:	20 business days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Reference Standard:	IEC61010-1	Test Voltage:	0.5KV-12KV
Output Impendance:	2Ω,500Ω	Impulse Wave:	1.2/50us
Input:	220V/50Hz	Surge Interval:	3-999s
Highlight:	EMC Tester Impulse Voltage Generator , 12KV EMC Tester Impulse Voltage Generator

IEC61010-1 Clause 6.8.3.3 EMC Tester Impulse Voltage Generator with 12KV Output Voltage

1. Introduction

The impulse voltage generator is manufactured according to the requirements of Appendix D and Figure D.1 of IEC62368-1, clause 14 of IEC60335-1, clause 6.8.3.3 and 14.8 of IEC61010-1, and clause 14 of GB4706.1. The impedance of IEC60335-1 and GB4706.1 are inconsistent, so please pay attention when choosing.

The impulse voltage generator has a no-load wave shape corresponding to the 1.2/50ms standard impulse specified in IEC 61180-1. The impulse test voltage is from 0.5KV to 12KV.

2. Standard

IEC62368-1:2018 Audio/video, information and communication technology equipment Part 1: Safety requirements Annex Dand Figure D.1

IEC60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 14 with 42Ω impedance

IEC61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements clause 6.8.3.3 and clause 14.8 with 12Ωimpedance

3. Parameters

Open output voltage	12KV (max)±5%
Frontier time	1.2μs ±30%
Half-value time	50μs ±20%
Output polarity	positive, negative, positive/negative automatically
Output impedance (optional)	12Ω,500Ω±10%
Times	1~9999 times
Surge interval	3~999s
Working environment	15℃~35℃ (temperature), 10%~75% (humidity)
Working power	220V±10% AC, 50/60Hz
Dimension	470mm260mm500mm (WHD)
Weight	35KG

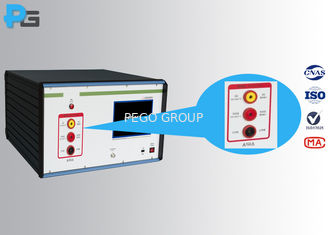

4. Figure

Tag:

Contact Person: Ms. Penny Peng

Tel: +86-18979554054

Fax: 86--4008266163-29929
