Dimension Verification Tool Plug Socket Tester for AS/NZS 3112 Figure A1 Three-Pin Flat-Pin Plugs

Dimension Verification Tool Plug Socket Tester for AS/NZS 3112 Figure A1 Three-Pin Flat-Pin Plugs
Dimension Verification Tool Plug Socket Tester for AS/NZS 3112 Figure A1 Three-Pin Flat-Pin Plugs

Large Image :  Dimension Verification Tool Plug Socket Tester for AS/NZS 3112 Figure A1 Three-Pin Flat-Pin Plugs

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-ASNZSFA1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: protective box + carton
Delivery Time: 15-20 working days
Payment Terms: T/T
Supply Ability: 100 set/month
Contact Now
Detailed Product Description
Normative Standard: AS/NZS 3112 Figure A1 Material: Hardened Steel
Highlight:

Dimension Verification Tool Plug Socket Tester

,

Three-Pin Flat-Pin Plug Socket Tester

,

AS/NZS 3112 Plug Socket Tester

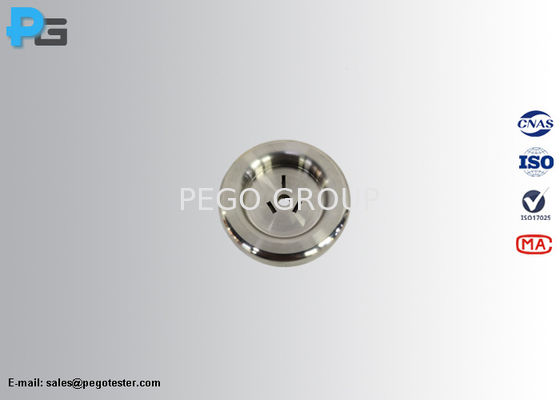

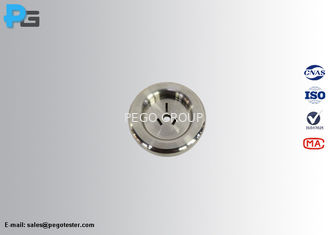

Gauges for Three-Pin Flat-Pin Plugs for Dimension Verification as Per AS/NZS 3112 figure A1

1. Introduction

The gauges for three-pin flat pin plugs are designed according to AS/NZS 3112 figure A1 and clauses 2.8.1 & 2.8.4 &2.13.7.1 & 2.13.7, for routine inspection of three-pin flat-pin plugs and two-pin flat-pin plugs, and dimension inspection of the pins before performing bending test and after free-fall test.

The disposition of pins in flat-pin plugs of types shown in figure 2.1 (a) and figure 2.1(c) shall be checked with this gauge, the plug pins shall pass easily through the gauge at all depths of insertion.





2. Specification

Material of gauge

Hardened steel

Quantity

3 (Gauge for three pin flat pin plugs 250Vmax./10A *1, Gauge for three pin flat pin plugs 250Vmax./15A*1, Gauge for three pin flat pin plugs 250Vmax./20A*1)

Dimension

As per AS/NZS 3112 figure A1


AS/NZS 3112 figure A1

Dimension Verification Tool Plug Socket Tester for AS/NZS 3112 Figure A1 Three-Pin Flat-Pin Plugs 0
