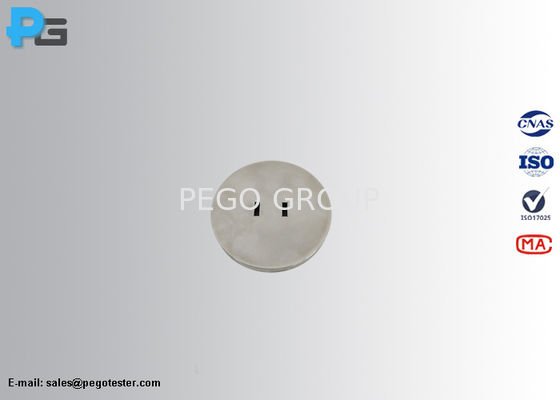

Two-Pin Flat-Pin Plug Gauge for AS/NZS 3112 Figure B1 and Clauses 2.8.1 2.13.7.2 Inspection Dimension and Straightness

Two-Pin Flat-Pin Plug Gauge for AS/NZS 3112 Figure B1 and Clauses 2.8.1 2.13.7.2 Inspection Dimension and Straightness
Two-Pin Flat-Pin Plug Gauge for AS/NZS 3112 Figure B1 and Clauses 2.8.1 2.13.7.2 Inspection Dimension and Straightness

Large Image :  Two-Pin Flat-Pin Plug Gauge for AS/NZS 3112 Figure B1 and Clauses 2.8.1 2.13.7.2 Inspection Dimension and Straightness

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab calibration certificate
Model Number: PG-ASNZSFB1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: protective box + carton
Delivery Time: 15-20 business days
Payment Terms: T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Normative Standard: AS/NZS 3112 Figure B1 Material: Hardened Steel
Application: For Verifying The Dimension Of Two Pin Plugs Quantity: 1

Gauge for Two-Pin Flat-Pin Plugs with Parallel Pins for Verifying the Dimensions

1.Introduction

Gauge for two-pin flat-pin plugs with parallel pins is designed according to AS/NZS 3112 figure B1 and clauses 2.8.1 and 2.13.7.2, for routine inspection of two-pin flat-pin plugs and straightness inspection of the pins before performing bending test. And the spacing of pins of two pin flat-pin plugs of the type shown in figure 2.1 (b) shall be checked with this gauge, the plug pins shall pass easily through the gauge at all depths of insertion.



2. Specification

Material of gauge

Hardened steel

Quantity

1

Dimension

As per AS/NZS 3112 figure B1


AS/NZS 3112 figure B1

 Two-Pin Flat-Pin Plug Gauge for AS/NZS 3112 Figure B1 and Clauses 2.8.1 2.13.7.2 Inspection Dimension and Straightness 0
