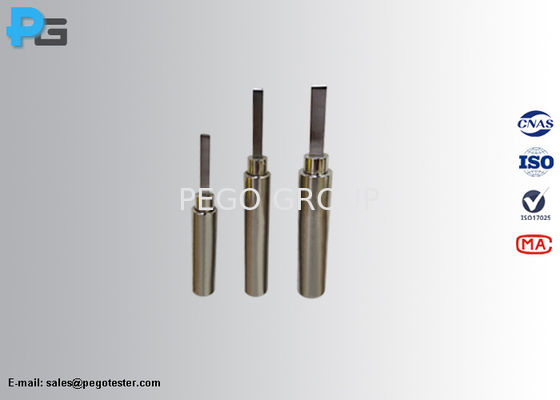

AS/NZS3112 Figure 3.10 Contact Independence Test Pin for Withdrawal Force Test Plug Socket Tester

AS/NZS3112 Figure 3.10 Contact Independence Test Pin for Withdrawal Force Test Plug Socket Tester
AS/NZS3112 Figure 3.10 Contact Independence Test Pin for Withdrawal Force Test Plug Socket Tester

Large Image :  AS/NZS3112 Figure 3.10 Contact Independence Test Pin for Withdrawal Force Test Plug Socket Tester

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-ASNZSF3.10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: protective box + carton
Delivery Time: 15-20 working days
Payment Terms: T/T
Supply Ability: 100 set/month
Contact Now
Detailed Product Description
Normative Standard: AS/NZS3112 Figure 3.10 And Clause 3.14.8.1 Material: Hardened Steel
Application: For Checking The Withdrawal Force Of Each Socket Contact
Highlight:

Withdrawal Force Test Pin

,

Plug Socket Tester Test Pin

Contact Independence Test Pin for Withdrawal Force Test for Each Socket Contact AS/NZS3112 Figure 3.10

1. Introduction

Contact independence test pin is designed according to AS/NZS3112 figure 3.10 and clause 3.14.8.1, for checking the withdrawal force of each socket contact. The withdrawal force shall be not less than 1.5N for ratings up to and including 10A, 2N for ratings above 10A up to and including 15A, and 3N for rating above 15A.



2. Specification

Dimension

As per AS/NZS3112 figure 3.10

Configured mass

1.5N (≤10A)

2N (>10A and ≤15A)

3N (>15A)


AS/NZS3112 figure 3.10

 AS/NZS3112 Figure 3.10 Contact Independence Test Pin for Withdrawal Force Test Plug Socket Tester 0
