Current-Carrying Hose Crushing Test Apparatus IEC60335-2-2

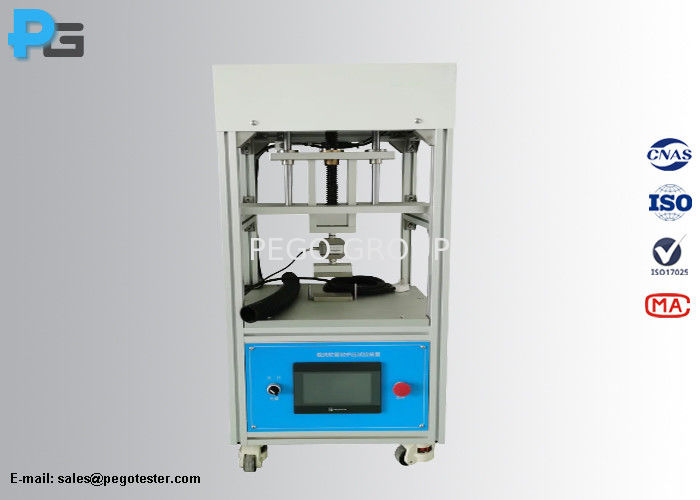

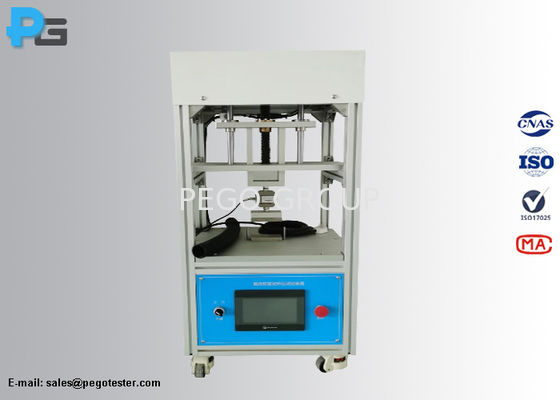

Large Image : Current-Carrying Hose Crushing Test Apparatus IEC60335-2-2

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-CHCA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	woodencase
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standard:	IEC60335-2-2 Clause 21.101	Application:	For Verifying Current-carrying Hoses Resistance To Crushing
Crushing Pressure:	1.5KN Max.	Pressurization Speed:	50mm/min±5mm/min
Control Mode:	PLC+touch Screen	Working Power:	AC220V/50Hz

Current-Carrying Hose Crushing Test Apparatus IEC60335-2-2

1. Introduction

The current-carrying hose test apparatus is designed to meet the test requirements of IEC60335-2-2 clause 21.101, for verifying the current-carrying hose resistance to crushing.

The hose is placed between two parallel steel plates, the axis of the hose is positioned at right angles to the longer sides of the plates. The plates are placed at a distance of approximately 350mm from one end of the hose. The steel plates are pressed together at a rate of 50mm/min±5mm/min until the applied force is 1.5KN. The force is then released and the electric strength test is carried out.

2. Specification

Control units	PLC+touch screen
Drive mode	Servo gear motor
Crushing pressure	1.5KN max.
Pressurization speed	50mm/min±5mm/min
Steel plates	length 100, width 50mm the edges of the longer sides rounded with a radius of 1mm
Pressure accuracy	1% (force sensor)
Working power	AC 220V/50Hz (φ1)
