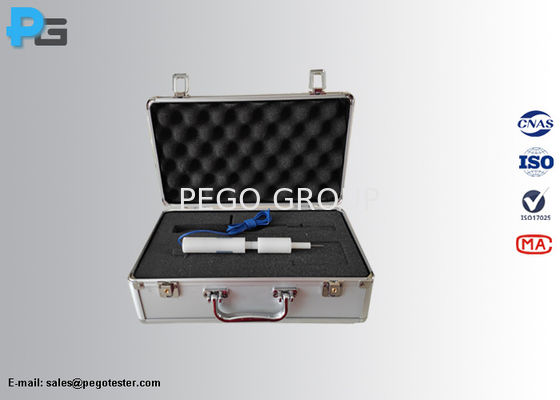

Test Pin with Diameter 1mm as Per BS1363-1 Figure 1 for Plug Socket Test

Test Pin with Diameter 1mm as Per BS1363-1 Figure 1 for Plug Socket Test
Test Pin with Diameter 1mm as Per BS1363-1 Figure 1 for Plug Socket Test

Large Image :  Test Pin with Diameter 1mm as Per BS1363-1 Figure 1 for Plug Socket Test

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-BSF1
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: protective case+carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Contact Now
Detailed Product Description
Normative Standard: BS1363-1 Figure 1, BS1363-2 Figure 1, BS1363-3 Figure 1 Application: For Checking The Openings Of The BS Plugs And Socket-outlets.
Diameter Of The Pin: Φ1mm~Φ0.95mm Material: Stainless Steel (pin)+nylon (handle)
Thruster: 0N, 5N

Test Pin with Diameter 1mm as Per BS1363-1 Figure 1

1. Introduction

The test pin is designed according to BS1363-1 figure 1 & clause 12.6.1, BS1363-2 figure 1 & clauses 9.2.1, 12.8.1, 13.7.1, 20.1.4, and BS1363-3 figure 1 & clauses 9.2.1, 12.8.1, 13.7.1, 20.1.4, and BS1363-5 figure 1 7 clauses 12.5.1.5, 12.5.2.2.2, for checking the openings of the BS plugs and socket-outlets.



2. Specification

Diameter of the pin

Φ1mm~Φ0.95mm

Material of pin

Stainless steel

Material of handle

Insulating material

Thruster

0N, 5N

Test Pin with Diameter 1mm as Per BS1363-1 Figure 1 for Plug Socket Test 0
