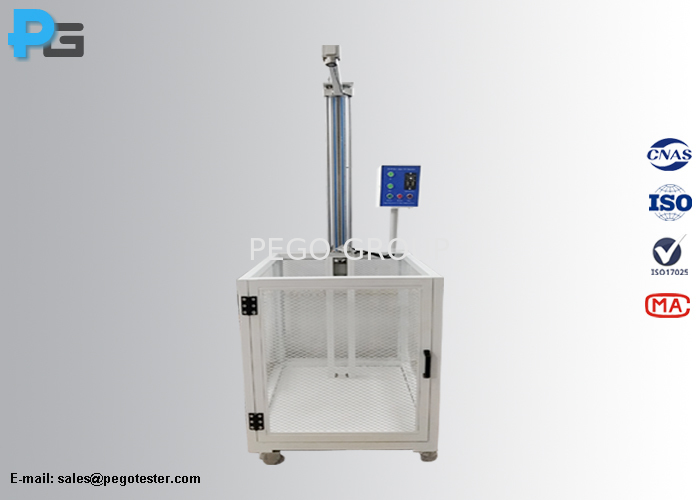

Ball Drop Tester with a Steel Ball

Large Image : Ball Drop Tester with a Steel Ball

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-PG-IPT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	woodencase
Delivery Time:	15-20working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Material Of The Ball:

Steel

Mass Of The Ball:

500g (customize-able)

Drop Height:

1.3m~2.1m (customize-able)

Working Power:

220V/50Hz

Highlight:

steel ball drop tester

electrical safety test equipment

ball drop tester with warranty

Ball Drop Tester with a Steel Ball

Product Specifications

Attribute	Value
Material of the ball	Steel
Mass of the ball	500g (customize-able)
Drop height	1.3m~2.1m (customize-able)
Working power	220V/50Hz

Ball Impact Test Device

Introduction

The ball impact test device meets the requirements of multiple international standards including IEC60598-1 clause 4.13.4 test a), IEC60950-1 clause 4.2.5, AS-NZS61439.4 clause 10.2.6.2, and IEC60601-1 clause 15.3.3. This precision instrument performs drop impact tests on enclosure surfaces with vertical free fall drops.

Key features include:

Adjustable impact height to accommodate different specimens
Electromagnetic ball release mechanism for precise, repeatable testing
Easy operation with high accuracy results
Evaluates damage levels to determine product quality

The steel ball drop test is ideal for evaluating:

Cathode ray tube faces
Platen glass of equipment
Enclosure surfaces of stationary equipment
Flat panel displays

Technical Specifications

Parameter	Specification
Impact steel ball	Φ50mm, 500±25g (customize-able)
Maximum specimen size	500mm × 500mm × 800mm (L×W×H)
Impact method	Electromagnetic release
Stroke height	1.3m~2.1m (adjustable and customize-able)
Protection method	Work table with protective fences (800mm × 800mm)
Control method	Button control
Equipment dimensions	1000 × 800 × 2200mm (L×D×H)
Power supply	220V/50Hz
