IEC60598-1 PLC Control Suspended Luminaire Torque Test Device with 5Nm Torque Range

Large Image : IEC60598-1 PLC Control Suspended Luminaire Torque Test Device with 5Nm Torque Range

Product Details:

Place of Origin:	China
Brand Name:	PEGO
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-TQD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Standard:	IEC60598-1	Torque Range:	5Nm
Max. EUT:	400*400mm	Warranty:	12 Months
Name:	Torque Test Device	Feature:	Suspended Luminaire
Highlight:	PLC control suspended luminaire tester , IEC60598-1 torque test device , 5Nm torque range LED tester

IEC60598-1 PLC Control Suspended Luminaire Torque Test Device with 5Nm Torque Range

Product Specifications

Attribute	Value
Standard	IEC60598-1
Torque range	5Nm
Max. EUT	400*400mm
Warranty	12 months
Name	Torque Test Device
Feature	Suspended Luminaire

Product Overview

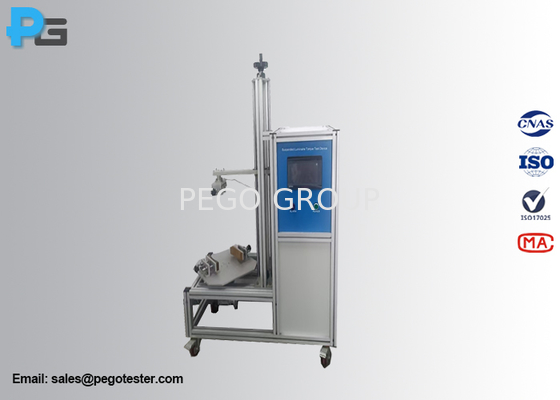

The suspended luminaire torque test device is a specialized equipment tailored to comply with IEC60598-1 clause 4.14.1 (test B), focusing on evaluating the safety performance of mechanical suspension devices for rigid suspension luminaires under constant torque forces.

Test Requirements

A torque of 2.5Nm is applied to the luminaires for a period of 1 min, first in a clockwise and then in an anticlockwise direction. For the test, it shall not be possible to rotate the luminaire relative to the fixed part by more than one revolution in either direction.

Core Purpose

Designed to verify whether the mechanical suspension structure of rigid suspension luminaires can maintain sufficient stability and safety when subjected to specified torque loads. Specifically assesses the anti-rotation capability of the luminaire relative to its fixed part under torque, ensuring the suspension system does not fail due to excessive rotation.

Technical Parameters

Controller	PLC control + touch screen interface
Test station	1
Test driver	Stepping motor
Torque	Range: 0.5Nm-5Nm Accuracy: class 0.5
Torque angle	0-3600
Test time	60s
Test height	1). Manual adjustment 2). maximum distance: 400mm
Fixture	1). Upper1, down1 2). maximum clamping distance: 400mm
Dimension	700mm600mm1200mm (LDH)
Working power	220V/50Hz
