Static Wind-Force Test Apparatus IEC60598-2-3 for Testing Lighting Fixture

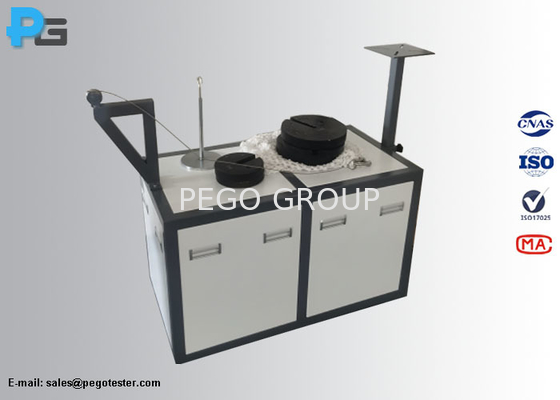

Large Image : Static Wind-Force Test Apparatus IEC60598-2-3 for Testing Lighting Fixture

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-SWFT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	woodencase
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standard:

IEC60598-2-3， IEC60598-2-5

Configuration:

Sandbag, Net, Weight And Test Rig

Mass:

5KG*2, 10KG*1, 15KG*1, 20KG*1

Test Object:

Streetlights Or Floodlights

Highlight:

Static Wind-Force Test Apparatus

Lighting Fixture Wind Test Equipment

IEC60598-2-3 Compliance Test Equipment

Static Wind-Force Test Apparatus IEC60598-2-3 for Testing Lighting Fixture

Introduction

The static wind-force test apparatus is designed to meet the test requirements of IEC60598-2-3:2011 clause 3.6.3.1 & figure 1 and IEC60598-2-5 clause 5.6.5. This equipment simulates outdoor conditions for streetlights or floodlights installed at heights by applying static loads, torque, or weight to evaluate the load-bearing capacity and stability of lighting fixtures under specified wind forces and installation heights.

Specification

Component	Details
Sandbag	Equipped with 20 bags (sand to be provided by user)
Net	Diameter: Φ1m \| Bearing capacity: 5-500kg \| Material: Polyester
Mass	5KG2, 10KG1, 15KG1, 20KG1 \| Material: Steel with chrome plating

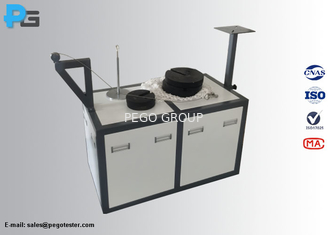

Figure
