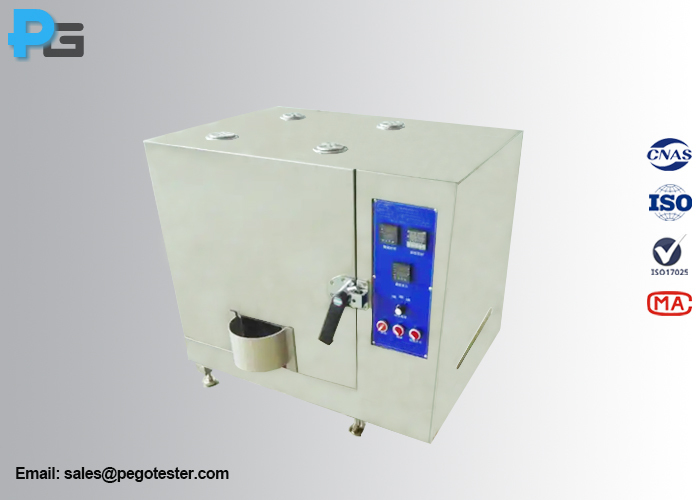

IEC61347-1 Heating Enclosure for Testing Thermally Protected Ballast

IEC61347-1 Heating Enclosure for Testing Thermally Protected Ballast
IEC61347-1 Heating Enclosure for Testing Thermally Protected Ballast

Large Image :  IEC61347-1 Heating Enclosure for Testing Thermally Protected Ballast

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-HES
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Normative Standard: IEC61347-1 Figure D.1 And Annex D Working Dimension: L610mm * W610mm * H610mm
Dimension Of Test Compartment (floor): L560mm * W560mm * D25mm Test Object: Thermally Protected Lamp Controlgrear (ballasts)
Highlight:

IEC61347-1 heating enclosure

,

thermally protected ballast tester

,

LED testing equipment enclosure

IEC61347-1 Heating Enclosure for Testing Thermally Protected Ballast
The heating enclosure is designed according to IEC61347-1 figure D.1 and annex D, for carrying out the heating test of thermally protected lamp controlgear.
Specifications
Parameter Details
Inner dimension L610mm × W610mm × H610mm
Overall dimension L660mm × W660mm × H760mm
Dimension of test compartment (floor) L560mm × W560mm × D25mm
Height of heater compartment 75mm
Structure of front door Up-and-down sliding type, with an opening size of 150×150 mm, and sealed by an aluminium semicircular structural component
Sample supports Designed according to figure D.1 of IEC61347-1
Heating elements
  • Heating element: 300W strip stainless steel heater
  • Heat sink: brass heat sink
  • Heat sink dimensions: L40×W40×L300 mm
  • Quantity: 1 set
  • Heating control: temperature sensing by thermocouple, controlled by temperature controller
Control unit
  • The temperature controller is installed on the front of the electrical box
  • Temperature control adopts PID control mode
  • Heating elements are controlled by solid-state relays
Test temperature 40℃
Working power 220V±10%, 50Hz
Product Diagram
IEC61347-1 Heating Enclosure for Testing Thermally Protected Ballast 0
