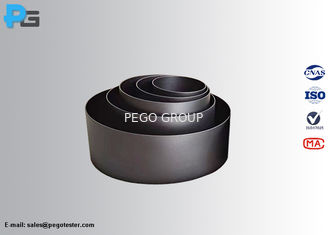

Low Carbon Steel Vessel for Induction Hotplates CISPR14-1 Compliant with 110mm to 300mm Diameter and 2mm Wall Thickness

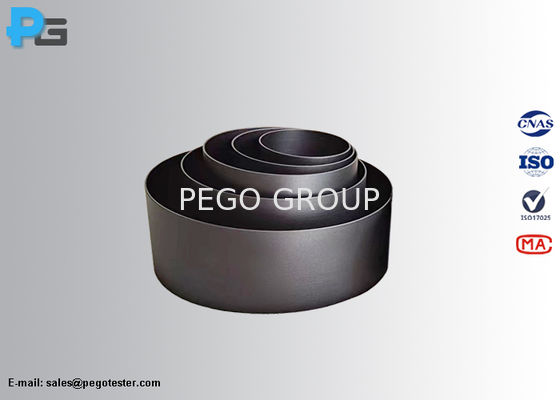

Large Image : Low Carbon Steel Vessel for Induction Hotplates CISPR14-1 Compliant with 110mm to 300mm Diameter and 2mm Wall Thickness

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-CSV

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD300~USD2000
Packaging Details:	carton
Delivery Time:	3-15 days
Payment Terms:	T/T
Supply Ability:	50 sets/months

Contact Now

Detailed Product Description

Normative Standards:	IEC60335-2-9, IEC60335-2-6, CISPR14-1	Application:	For Testing Induction Hotplates
Material:	Low Carbon Steel	Diameter:	110mm, 145mm, 180mm, 220mm, 300mm
Wall Thickness:	2mm	Base Thickness:	2mm, 3mm, 5mm Depends
Highlight:	IEC60335-2-6 Compliant Vessel , 110mm to 300mm Diameter Vessel , 2mm Wall Thickness Vessel

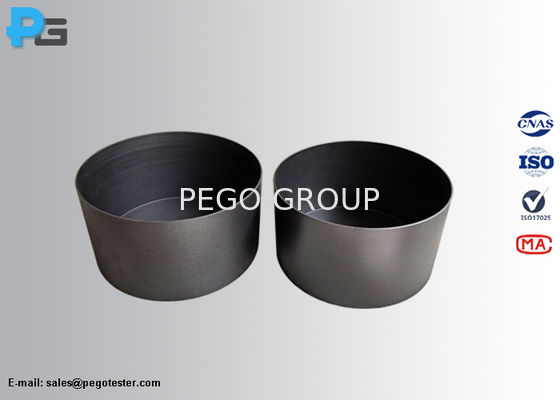

Low Carbon Steel Vessels for Induction Hotplates to Perform Normal Operation Test IEC60335-2-6

The low carbon steel vessels simulate cooking appliances for performing normal operation tests on induction hotplates. These vessels are made of low carbon steel with a maximum carbon content of 0.08%, featuring a high-temperature non-stick coating. The cylindrical design excludes metallic handles or protrusions.

Key Specifications

The base diameter must match or exceed the cooking zone diameter. The base must not be convex, with concavity limited to 0.6% of diameter at ambient temperature (20±5°C). Compliant with IEC60335-2-9 Figure 104, IEC60335-2-6 Figure 102, and CISPR14-1 standards.

Technical Parameters

Diameter of Cooking Zone (mm)	d (mm)	e (mm)	a (mm)	c (mm)
≤110	110	140	2±0.5	≤0.006 * d
＞110≤145	145	140	2±0.5	≤0.006 * d
＞145≤180	180	140	2±0.5	≤0.006 * d
＞180≤220	220	120	2±0.5	≤0.006 * d
＞220≤300	300	100	2±0.5	≤0.006 * d
