Unpolished Aluminum Vessels for IEC60335-2-6 Compliant Cooking Tests with 110mm to 300mm Diameter and 2mm Wall Thickness

Large Image : Unpolished Aluminum Vessels for IEC60335-2-6 Compliant Cooking Tests with 110mm to 300mm Diameter and 2mm Wall Thickness

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-AV

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD300-USD2000
Packaging Details:	carton
Delivery Time:	3-20 days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standards:	IEC60335-2-9, IEC60335-2-6, EN30-1-1, GB4706.14, GB16410	Material:	Unpolished Commercial Quality Aluminum
Diameter Of Vessels:	110mm, 145mm, 180mm, 220mm, 300mm	Wall Thickness:	2mm
Base Thickness:	8mm, 9mm, 10mm
Highlight:	110mm to 300mm Diameter Aluminum Vessels , 2mm Wall Thickness Test Vessels , 8mm to 10mm Base Thickness Cooking Test Vessels

Upolished Aluminum Vessels for Normal Operation Test to Hotplates and Hob Elements IEC60335-2-6

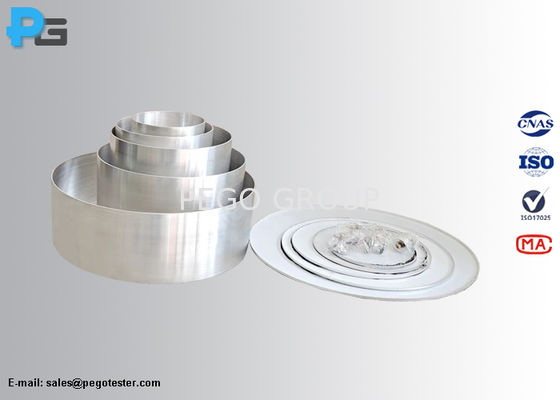

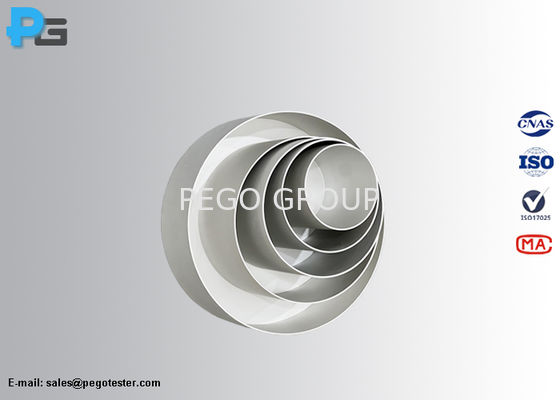

The upolished aluminum vessels simulate cooking appliances to perform normal operation tests on hotplates, hob elements, and electric cooking plates. These vessels are constructed from unpolished commercial quality aluminum, feature a flat bottom, and come with a lid. The base of the vessel is non-convex, with concavity not exceeding 0.05mm.

Design Standards

The aluminum vessels are designed in compliance with:

IEC60335-2-9 figure 103
IEC60335-2-6 figure 101
EN30-1-1 figure C2
GB4706.14 figure 103
GB16410 figure 7

Specifications

Diameter of Cooking zone (mm)	Approximate Dimensions
≤110	110mm \| 140mm \| 8mm
>110≤145	145mm \| 140mm \| 8mm
>145≤180	180mm \| 140mm \| 9mm
>180≤220	220mm \| 120mm \| 10mm
>220≤300	300mm \| 100mm \| 10mm
