IEC60350-2 Compliant Standardized Cookware with Stainless Steel AISI430 Base and AISI304 Wall for Energy Consumption Testing

Large Image : IEC60350-2 Compliant Standardized Cookware with Stainless Steel AISI430 Base and AISI304 Wall for Energy Consumption Testing

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-SSV

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD300-USD2000
Packaging Details:	carton
Delivery Time:	3-15 working days
Payment Terms:	T/T
Supply Ability:	50 sets/months

Contact Now

Detailed Product Description

Normative Standard:	IEC (EN) 60350-2	Base Material:	Stainless Steel AISI430
Wall Material:	Stainless Steel AISI 304	Lid Material:	Aluminum
Diameter Of Vessels:	120mm ~ 330mm (8 Sizes)	Application:	For Testing Energy Consumption Of Electrical Hobs
Highlight:	IEC60350-2 Compliant Standardized Cookware , Stainless Steel AISI430 Base Cookware , Stainless Steel AISI304 Wall Cookware

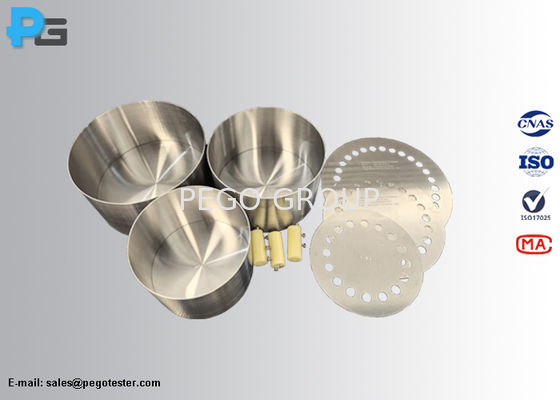

IEC60350-2 Standardized Cookwares for Evaluating the Energy Consumption of Electrical Hobs

Introduction

The standardized cookware is designed according to IEC60350-2 and EN60350-2 standards for evaluating the energy consumption of electrical hobs intended for household use. The side wall of the vessel is made of 1.4301 stainless steel (AISI 304) with thickness 1mm±0.05mm, while the bottom is made of 1.4016 stainless steel (AISI430) with thickness 6mm±0.05mm.

The cookware is cylindrical without handles or protrusions. The lid is made of aluminum with a thickness of 2mm±0.05mm. Each hole circle on the lid has a diameter of 16mm±0.1mm, with holes evenly distributed. The flat lid can accommodate a temperature sensor in the center.

Specifications

Diameter of the cookware bottom (outside) mm	Diameter of the lid mm	Lid hole circle diameter mm	Number of holes on the circle	Total cookware height (outside) mm	Flatness of cookware bottom mm	Water load g	Cooking zone size category mm	Standardised cookware categories
120±0.5	130±1	80±1	7	125±0.5	≥0 <0.075	650	≥100 <130	A
150±0.5	165±1	110±1	11	125±0.5	≥0 <0.075	1030	≥130 <160
180±0.5	200±1	140±1	16	125±0.5	≥0 <0.075	1500	≥160 <190	B
210±0.5	230±1	170±1	22	125±0.5	≥0 <0.1	2050	≥190 <220	C
240±0.5	265±1	200±1	29	125±0.5	≥0 <0.1	2700	≥220 <250
270±0.5	300±1	230/210a±1	18/18a	125±0.5	≥0 <0.15	3420	≥250 <280	D
300±0.5	330±1	260/210a±1	23/22a	125±0.5	≥0 <0.15	4240	≥280 <310
330±0.5	365±1	290/270a±1	27/27a	125±0.5	≥0 <0.15	5140	≥310 ≤330
