Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness

Name: Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness
Brand: Pego Electronics (Yi Chun) Company Limited
Price: 900.00 USD
Availability: InStock

Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness

Large Image : Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD300-USD1500
Packaging Details:	carton
Delivery Time:	5-10 days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standard:

GB 21456

Material:

Q235 Steel With Maximum Carbon Content Less Than 0.08%

Application:

For Evaluating The Energy Efficiency And Energy Efficiency Grade Of Household Induction Cookers

Wall Thickness:

1.5mm And 2mm

Highlight:

GB21456 Compliant Standard Pan with Lid

Q235 Steel Induction Cooker Test Pan

1.5mm and 2mm Wall Thickness Energy Efficiency Test Pan

Standard Pan with Lid for Testing Energy Efficiency and Energy Efficiency Grade of Induction Cookers Compliant to GB21456

Introduction

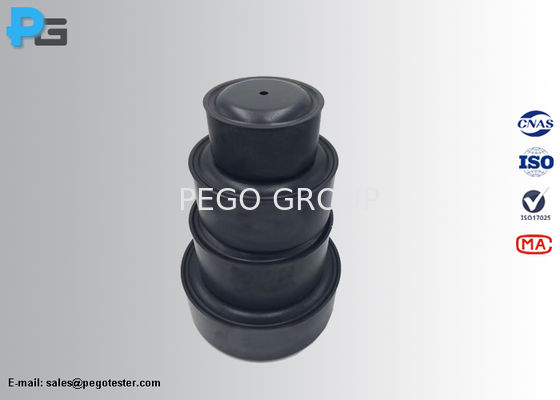

The standard pan with lid is designed according to GB21456 Annex A for testing the energy efficiency and energy efficiency grade of household induction cookers. The pan and lid are constructed from Q235 steel with a maximum carbon content of 0.08%.

The surface of both pan and lid is smooth and polished to prevent rust. The lid thickness is 1mm, and the pan bottom cannot convex outward, with maximum concavity limited to 0.6% of the effective diameter.

Specification

Size of Vessels

Figure No.	A/mm	B/mm	H/mm	t/mm	Volume/L
B1	Φ140	Φ120	75	1.5	1
B2	Φ200	Φ180	95	1.5	3
B3	Φ220	Φ200	110	1.5	4
B4	Φ280	Φ260	105	2.0	6

Size of Lids

Figure No.	A/mm	B/mm	C/mm	t/mm
B1	Φ82	Φ126	Φ146	1.0
B2	Φ142	Φ186	Φ206	1.0
B3	Φ162	Φ206	Φ226	1.0
B4	Φ222	Φ266	Φ286	1.0
