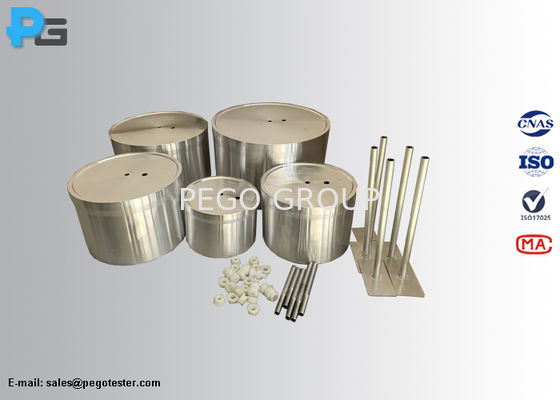

Standard Test Vessel for Gas Burner Compliant with AS/NZS 5263.0 in Commercial Quality Aluminum with Diameter Options 160mm to 315mm

Large Image : Standard Test Vessel for Gas Burner Compliant with AS/NZS 5263.0 in Commercial Quality Aluminum with Diameter Options 160mm to 315mm

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS calibration certificate
Model Number:	PG-ASNZS5263

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 300~ USD3000
Packaging Details:	Carton
Delivery Time:	10-20 days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standard:	AS/NZS 5263.0, AS/NZS5263.1.1	Material:	Commercial Quality Aluminum
Diameter Of Vessel:	160mm, 195mm, 230mm, 270mm, 315mm	Optional Accessories:	Lid, Strirrer, Thermocouple Well
Application:	For Testing CO And CO2 Ratio, And NO2 Emmission Rate Of Gas Burner
Highlight:	AS/NZS 5263.0 Standard Test Vessel , Commercial Quality Aluminum Gas Burner Test Vessel , 160mm to 315mm CO/CO2 Ratio Test Vessel

Standard Test Vessels for Determination of CO/CO₂ Ratio of Gas Burner Compliant with AS/NZS 5263.0

Introduction

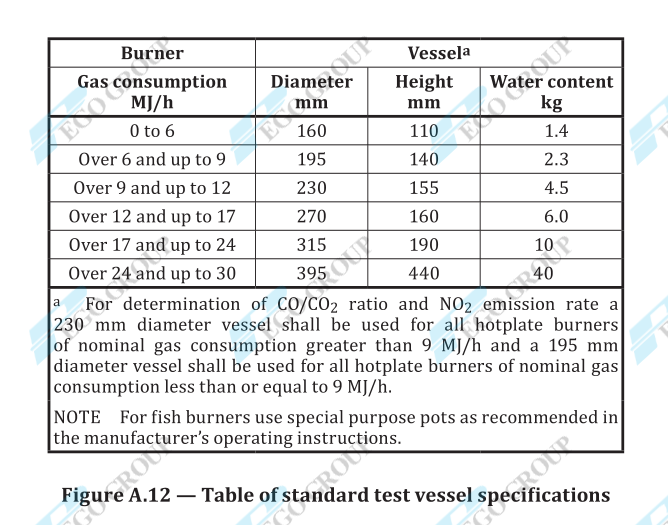

These standard test vessels are designed in compliance with AS/NZS 5263.0 Figure A12 for determining the CO/CO₂ ratio and NO₂ emission rate of gas burners. Each vessel includes a lid, stirrer, and thermocouple well designed according to AS/NZS 5263.1.1 Figure AA.104. Constructed from commercial quality aluminum, the vessels feature a thermocouple fixed with a tightening joint for secure measurements.

Specifications

Burner	Vessel	Stirrer
Gas consumption MJ/h: 0-6	Diameter mm: 160 Height mm: 110	Length mm: 250 OD mm: φ12 Wall thickness mm: 1 Aluminum flat plate mm: L100W50THK2
Gas consumption MJ/h: >6 and ≤9	Diameter mm: 195 Height mm: 140	Length mm: 250 OD mm: φ12 Wall thickness mm: 1 Aluminum flat plate mm: L100W50THK2
Gas consumption MJ/h: >9 and ≤12	Diameter mm: 230 Height mm: 155	Length mm: 250 OD mm: φ12 Wall thickness mm: 1 Aluminum flat plate mm: L100W50THK2
Gas consumption MJ/h: >12 and ≤17	Diameter mm: 270 Height mm: 160	Length mm: 250 OD mm: φ12 Wall thickness mm: 1 Aluminum flat plate mm: L100W50THK2
Gas consumption MJ/h: >17 and ≤24	Diameter mm: 315 Height mm: 190	Length mm: 250 OD mm: φ12 Wall thickness mm: 1 Aluminum flat plate mm: L100W50THK2

Standard Test Vessel for CO/CO₂ Ratio Determination
