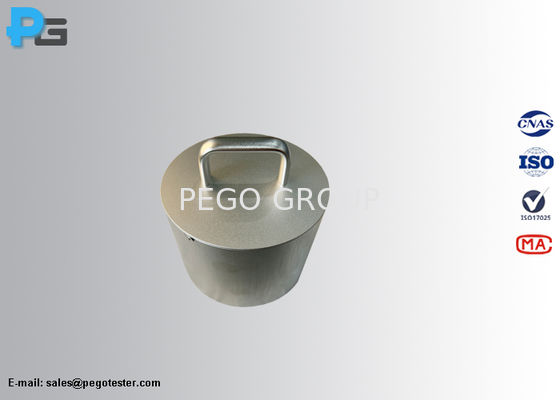

1.8KG Loaded Aluminum Impact Vessel for Hob Surface Testing Compliant with IEC60335-2-6 and IEC60335-2-9

Large Image : 1.8KG Loaded Aluminum Impact Vessel for Hob Surface Testing Compliant with IEC60335-2-6 and IEC60335-2-9

Product Details:

Place of Origin:	China
Brand Name:	Pego Electonics
Certification:	CNAS Calibation Certificater
Model Number:	PG-AV1.8

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 200-USD500
Packaging Details:	carton
Delivery Time:	5-10 days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standard:

IEC60335-2-6, IEC60335-2-9

Application:

For Testing The Hob Surface To Withstand The Impact Stresses From A 150mm Height

Impact Weight:

1.8KG

Material:

Aluminum

Highlight:

1.8KG Loaded Impact Vessel

IEC60335-2-6 Compliant Test Vessel

IEC60335-2-9 Compliant Hob Test Equipment

Impact Vessel with 1.8KG Loaded for Testing Hob Surface

Product Overview

The impact vessel is designed to meet the test requirements of IEC60335-2-6 clause 21.102 and IEC60335-2-9 clause 20.101, verifying the ability of hob surfaces to withstand mechanical stresses. The vessel is dropped flat 10 times from a height of 150mm onto the cooking zone, with requirements that the hob surface remains uncracked and maintains electrical integrity.

Key Features

Constructed from durable aluminum material
Flat base diameter: 120mm±10mm with rounded edges (radius ≥10mm)
Uniformly filled with ≥1.3kg of sand or shot for total mass of 1.8kg±0.01kg
Validates surface durability through standardized impact testing

Technical Specifications

Parameter	Specification
Vessel Diameter	120mm±10mm
Edge Radius	≥R10mm
Weight of Vessel	≤0.5KG
Configuration	Equipped with shot ≥1.3KG

Tag:

Contact Person: Ms. Penny Peng

Tel: +86-18979554054

Fax: 86--4008266163-29929
