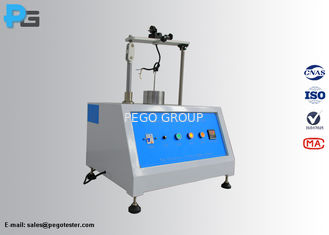

IEC60884-1 Cord Retention Tester with 220V/50Hz Power Supply and 60 Times/Min Testing Rate for Plug Socket Testing

IEC60884-1 Cord Retention Tester with 220V/50Hz Power Supply and 60 Times/Min Testing Rate for Plug Socket Testing
IEC60884-1 Cord Retention Tester with 220V/50Hz Power Supply and 60 Times/Min Testing Rate for Plug Socket Testing
video play

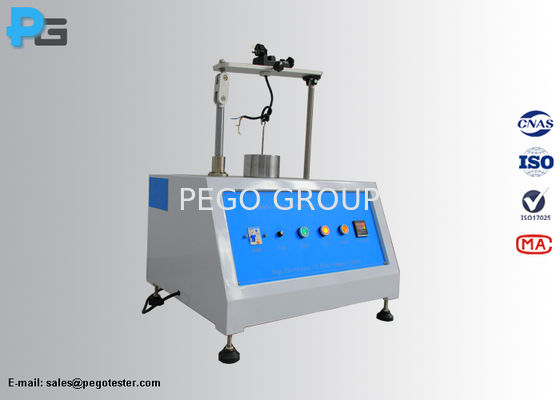

Large Image :  IEC60884-1 Cord Retention Tester with 220V/50Hz Power Supply and 60 Times/Min Testing Rate for Plug Socket Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-CRT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 15 business days
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Application: For Checking The Effectiveness Of The Retention Of The Cable By The Cord Anchorage Standard Conform To: IEC60884-1 Clause 23.2 Figure 20, VDE0620-1
Working Power: 220V/50Hz Warranty: 12 Months
Highlight:

220V/50Hz Cord Retention Tester

,

60 Times/Min IEC60884-1 Test Apparatus

,

Remote After-Sales Service Plug Socket Tester

IEC60884-1 Figure 20 Apparatus For Cord Retention Testing
Introduction

The cord retention testing apparatus is designed according to IEC60884-1 clause 23.2 figure 20 standards. This equipment verifies the effectiveness of cable retention by cord anchorages in various electrical components including removable plugs, removable mobile sockets, non-rewirable plugs, and rewirable mobile sockets. The apparatus applies controlled pulls of 50N/60N/80N/100N to flexible cables at a rate of 1 pull per second for 100 cycles.

Specifications
Power Supply AC 220V±10%, 50Hz/60Hz
Number of Testing 1~9999 (x1x10x100)
Weight Configuration 10N*1, 60N*1, 20N*2 (Tests 40N, 50N, 60N, 80N, 100N weights)
Material SUS304 stainless steel
Testing Rate 60 times/min
Compliance Standard IEC60884 figure 20, VDE0620
Tensile Force Requirements
Rated Current (A) Rated Voltage (V) Tensile Force
2.5 -- 50
2.5～16 <250 60
2.5～16 >250 80
>16 -- 100
Product Diagram
IEC60884-1 Cord Retention Tester with 220V/50Hz Power Supply and 60 Times/Min Testing Rate for Plug Socket Testing 0
Frequently Asked Questions
Will you provide on-site installation service?

The equipment ships as a complete unit requiring only simple wiring connections upon receipt. No on-site installation service is typically needed.

What is the warranty period and after-sales service?

The warranty covers 12 months from delivery date. Our engineering team resolves 95% of issues through remote support with 24-hour response during business days. We use premium components for reliability, but if parts fail within warranty, replacements are provided at no cost with installation guidance.

Does the device include a test report?

A factory test report is included at no additional cost. For an ISO17025 authorized laboratory calibration certificate, additional fees and extended lead time apply.
