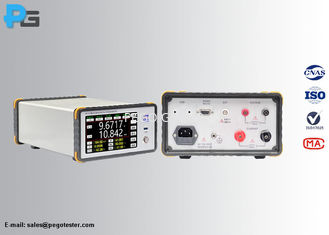

Digital Power Meter with 600V Voltage Test Range 20A Current Test Range and 5KHz Frequency Test Range for Accurate Electrical Parameter Measurement

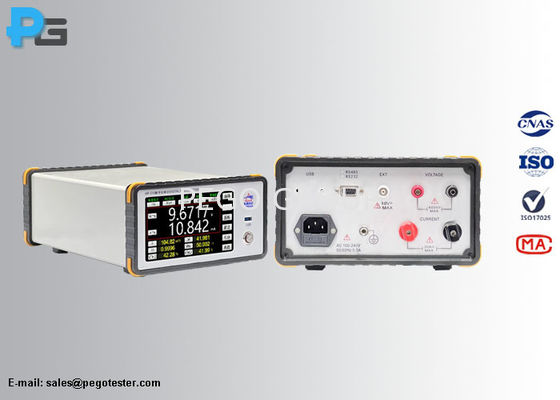

Large Image : Digital Power Meter with 600V Voltage Test Range 20A Current Test Range and 5KHz Frequency Test Range for Accurate Electrical Parameter Measurement

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CANAS Calibration Certificate
Model Number:	HP510

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD500~USD1500
Packaging Details:	carton
Delivery Time:	3-7 working days
Payment Terms:	T/T
Supply Ability:	100 sets/months

Contact Now

Detailed Product Description

Application:	For Testing AC / DC Voltage, Current, Power, Power Factor, Frequency, Harmonic	Voltage Test Range:	0-600V (AC/DC)
Current Test Range:	0-20A (AC/DC)	Power Factor Test Range:	-1.000～1.000
Frenquency Test Range:	5KHz	Input:	AC100V ~ 240V, 50Hz/60Hz
Highlight:	600V Voltage Test Range Digital Power Meter , 20A Current Test Range Electrical Parameter Measuring Instrument , 5KHz Frequency Test Range Multifunctional Power Analyzer

Digital Electrical Parameter Measuring Instrument

Model HP-510 - Multifunctional Power Meter for Voltage, Current, Power Factor, Frequency and Harmonics Testing

Product Overview

The HP-510 is a high-precision digital power meter designed for measuring single-phase (1P/2W) AC and DC power supplies. Featuring a 5" IPS LCD display with 5-digit measurement resolution, this instrument provides simultaneous measurement of multiple electrical parameters with exceptional accuracy.

Key Features

Wide frequency test range: DC 0.5Hz to 100kHz
High-precision measurement capability (0.2 level accuracy)
Waveform display for voltage, current, and power
Comprehensive harmonic measurement and analysis (IEC61000-4-7 compliant at 50/60Hz)
Multiple integration modes for power measurement
External sensor input terminals
Versatile communication interfaces

Technical Specifications

Parameter	Specification
Model	HP510
AC/DC Voltage	600Vrms MAX
AC/DC Current	20Arms MAX
Power Factor	-1.000 to 1.000
Test Accuracy	±(0.1% of Reading + 0.2% of Range), 0.2 Level
Input Bandwidth	DC, 0.5Hz to 100kHz
Power/ Frequency Filter	OFF, 500Hz, 5KHz
Integration Modes	Manual, Standard, or Repeated Integration
Integration Time	0:00:00 to 9999:59:59 (hours:minutes:seconds)
Measurement Mode	0.2 seconds per measurement
Power Supply	AC100V-240V, 50Hz/60Hz
Dimensions	214mm (W) × 320.5mm (D) × 120.5mm (H)

Input Specifications

Parameter	Voltage	Current
Input Type	Floating input via resistor divider	Direct input or sensor input
Input Impedance	≈2MΩ	Direct: ≈500mΩ (200mA and below), ≈50mΩ (0.5A and above) Sensor: ≈100KΩ
Measurement Range (RMS)	15V, 30V, 60V, 150V, 300V, 600V	Direct: 5mA to 20A Sensor: 50mV to 10V
Maximum Continuous Input	1.5kV Peak or 1kV RMS (whichever is smaller)	30A Peak or 20A RMS (200mA and below) 100A Peak or 30A RMS (0.5A and above)

Environmental Conditions

Condition	Specification
Operating Temperature	0 to 40℃
Storage Temperature	-40 to 70℃
Humidity	<70%RH operating, <90%RH storage (no condensation)
Usage	Indoor use only, altitude <2000 meters

All specifications are subject to change without notice. Please consult the manufacturer for the most current technical information.
