Inclined Plane Stability Test Equipment with 0-30° Tilted 1r/min Rotation Speed and 50-125KG Bearing Capacity

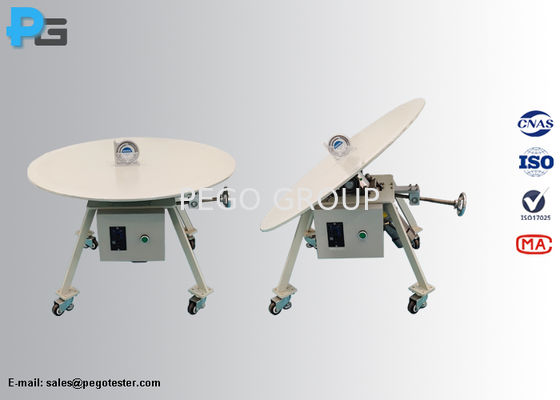

Large Image : Inclined Plane Stability Test Equipment with 0-30° Tilted 1r/min Rotation Speed and 50-125KG Bearing Capacity

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	WD-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD500~USD2000
Packaging Details:	woodencase
Delivery Time:	5-15 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standards:	IEC60335-1, IEC60065, IEC60950	Titled Angle:	0-30°
Rotation Speed:	1r/min	Bearing Capacity:	50-125KG
Diameter Of The Plane:	600mm, 800mm, 1000mm Optional	Input:	AC220V±10%, 50Hz
Highlight:	0-30° Tilted Inclined Plane , 1r/min Rotation Speed Stability Test Equipment , 50-125KG Bearing Capacity Electrical Safety Tester

Inclined Plane 0-30° Tilted for Verifying the Stability of Electrical Appliance Compliant to IEC60335-1

Introduction

The inclined plane is designed to simulate tilted desktop scenarios in normal use conditions, assessing the stability performance of household and similar electrical appliances used on tables or floors. This stability test meets the requirements of:

IEC60335-1 clause 20.1
IEC60065 clause 19.1
IEC60950 clause 4.1.1

The inclined plane consists of a surface and angle adjusting device with adjustable angles ranging from 0 to 30 degrees. The rotation speed is 1rpm. During testing, appliances are placed in their intended position on a plane inclined at 10° or 15° to the horizontal, then slowly rotated through 360° about their normal vertical axis. The appliance must not overturn during these tests.

Specifications

Feature	Specification
Rotation speed	1r/min
Tilted angle	0-30°
Flat surface diameter	600mm \| 800mm \| 1000mm
Bearing capacity	50KG \| 80KG \| 125KG
Drive mode	Hand-actuated or dynamoelectric
Working power	AC220V±10%, 50Hz, 0.3KW

Tag:

Contact Person: Ms. Penny Peng

Tel: +86-18979554054

Fax: 86--4008266163-29929
