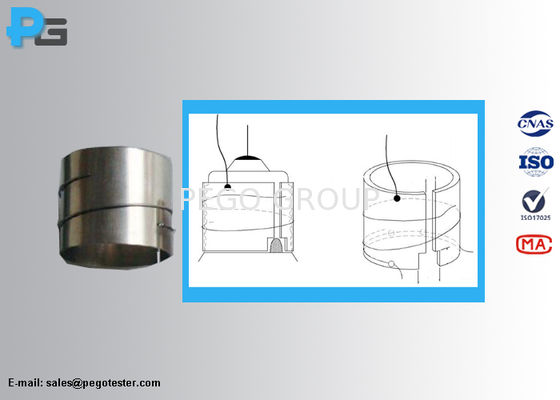

99% Purity Nickel Sleeves for Testing Temperature Rising of E14 E26 E27 B22 E12 Lampholders Compliant to IEC60360

Large Image : 99% Purity Nickel Sleeves for Testing Temperature Rising of E14 E26 E27 B22 E12 Lampholders Compliant to IEC60360

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-NLH

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD 200~USD5000
Packaging Details:	carton
Delivery Time:	3-7 working days
Payment Terms:	T/T
Supply Ability:	100 pcs/months

Contact Now

Detailed Product Description

Normative Standard:

IEC60360

Application:

For Testing The Temperature Rising Of Incandescent Lamps

Material:

99% Purity Nickel

Accessory:

Thermocouples

Highlight:

99% Purity Nickel Sleeves

IEC60360 Compliant Nickel Sleeves

E14 E26 E27 B22 E12 Lampholder Sleeves

99% Purity Nickel Sleeves for Testing the Temperature Rising of Lampholders E14, E26, E27, B22, E12 Compliant to IEC60360

Introduction

These nickel sleeves are precision-engineered in strict compliance with IEC60360 standards for testing temperature rise in incandescent lamp holders. Manufactured from nickel with a minimum purity of 99% and a Vickers hardness of 135°, each sleeve features a permanently attached thermocouple and an external spring wire.

Specifications

Parameter	Value
Purity of nickel	99% min
Thickness	0.5mm±0.02mm
Vickers hardness	135°±15°
Diameter of Spring Wire	Φ 0.8mm ∗ 1~1.5 turns around the sleeve

Compatible Models

E14/E20 lampholder (IEC60360 fig.3, inner size: 13.5mm)
E17/E20 lampholder (IEC60360 fig.4)
E26/E27 lampholder (IEC60360 fig.5)
E39/E40 lampholder (IEC60360 fig.6)
E14 lampholder (IEC60360 fig.7, inner size: 15mm)
E14 lampholder (IEC60360 fig.8, inner size: 17mm)
B22 lampholder (IEC60360 fig.9, inner size: 26mm)
B15 lampholder (IEC60360 fig.10, inner size: 14.5mm)
B15 lampholder (IEC60360 fig.11, inner size: 22mm)
B15 lampholder (IEC60360 fig.12, inner size: 17.5mm)
B22 lampholder (IEC60360 fig.13, inner size: 21.5mm)
E12 lampholder (IEC60360 fig.14)
