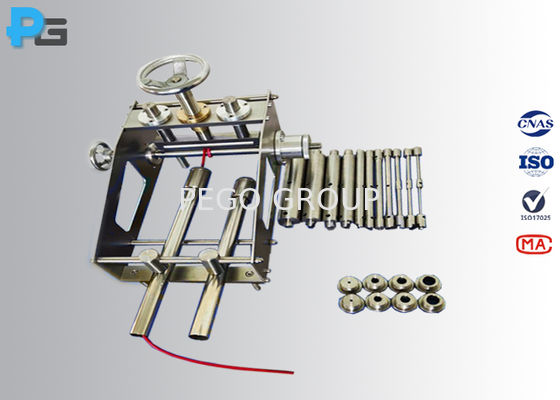

Cold Bend Test Apparatus for Φ2.5mm~Φ12.5mm Cable Insulation with Φ4.0mm~Φ46mm Mandrel and 2~10 Turns

Large Image : Cold Bend Test Apparatus for Φ2.5mm~Φ12.5mm Cable Insulation with Φ4.0mm~Φ46mm Mandrel and 2~10 Turns

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-CBT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000~USD5000
Packaging Details:	woodencase
Delivery Time:	10-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Normative Standards:	IEC60811-504, IEC60811-1-4, IEC60884-1	Application:	For Testing The Mechanical Strength Of Cable Insulation At Low Temperature
Overall Diameter Of Test Cable:	Φ2.5mm~Φ12.5mm	Diameter Of Mandrel:	Φ4.0mm~Φ46mm (totally 14 Pieces)
Material Of The Device:	SUS304 Stainless Steel	Number Of Turns:	2~10 Turns
Highlight:	Φ2.5mm~Φ12.5mm Cable Insulation Tester , Φ4.0mm~Φ46mm IEC60811 Test Equipment , 2~10 Turns Cold Bend Test Apparatus

Cold Bend Test Apparatus for Testing the Cable Insulation at Low Temperature Compliant to IEC60811

Introduction

The cold bend test apparatus is designed according to IEC60811-504, IEC60811-1-4 clause 8.1 and figure 1, IEC60884-1, VDE0472, GB2951.4 and GB2099-94 standards for conducting bending tests at low temperatures on cable insulation.

This apparatus is suitable for:

Cores of circular cross-section with external diameter up to 12.5mm
Sector-shaped cores when dumb-bell preparation isn't possible
Cables with overall diameter up to 12.5mm
Flat cables with major axis dimension up to 20mm

The system consists of a revolving mandrel and guiding device, which must be held in a suitable low temperature cabinet before and during testing. The mandrel diameter is between 4-5 times the test piece diameter. After testing, specimens are examined while still on the mandrel - the insulation must show no cracks under normal or corrected vision.

Specifications

Parameter	Value
Overall diameter of test piece	Φ2.5mm~Φ12.5mm
Diameter of mandrel	Φ4.0mm~Φ46mm (14 pieces total)
Tube sleeve	Φ3.5mm2, Φ6mm2, Φ10mm2, Φ12mm2, Φ16mm*2
Number of turns	2~10 turns
Rotate speed	1r/5s
Working station	2
Material	SUS304 stainless steel
Working temperature	-15℃±1℃

Test piece diameter (mm)	Number of turns
d≤2.5	10
2.5<d≤4.5	6
4.5<d≤6.5	4
6.5<d≤8.5	3
8.5<d	2
