IEC61010-1 Clause 6.8.3.3 EMC Tester Impulse Voltage Generator with 12KV Output Voltage and 500Ω Output Impedance

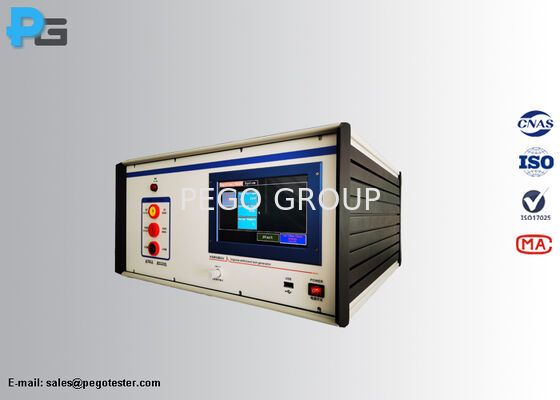

Large Image : IEC61010-1 Clause 6.8.3.3 EMC Tester Impulse Voltage Generator with 12KV Output Voltage and 500Ω Output Impedance

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	LSG-255

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD3500~USD5500
Packaging Details:	carton
Delivery Time:	20 business days
Payment Terms:	T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

Reference Standard:	IEC61010-1	Test Voltage:	0.5KV-12KV
Output Impendance:	2Ω,500Ω	Impulse Wave:	1.2/50us
Input:	220V/50Hz	Surge Interval:	3-999s
Highlight:	IEC61010-1 Clause 6.8.3.3 EMC Tester , 220V/50Hz Input Impulse Voltage Generator , 500Ω Output Impedance EMC Tester

IEC61010-1 Clause 6.8.3.3 EMC Tester Impulse Voltage Generator with 12KV Output Voltage

Product Overview

The impulse voltage generator is designed to meet the requirements of:

Appendix D and Figure D.1 of IEC62368-1
Clause 14 of IEC60335-1
Clause 6.8.3.3 and 14.8 of IEC61010-1
Clause 14 of GB4706.1

Note: The impedance specifications differ between IEC60335-1 and GB4706.1 standards.

The generator produces a no-load wave shape matching the 1.2/50ms standard impulse specified in IEC 61180-1, with adjustable test voltage from 0.5KV to 12KV.

Compliance Standards

IEC62368-1:2018 Audio/video, information and communication technology equipment - Safety requirements (Annex D and Figure D.1)
IEC60335-1 Household and similar electrical appliances - Safety (42Ω impedance)
IEC61010-1 Safety requirements for electrical measurement, control, and laboratory equipment (12Ω impedance)

Technical Specifications

Parameter	Specification
Open output voltage	12KV (max)±5%
Frontier time	1.2μs ±30%
Half-value time	50μs ±20%
Output polarity	Positive, negative, or automatic positive/negative
Output impedance (optional)	12Ω, 500Ω±10%
Times	1~9999 times
Surge interval	3~999s
Working environment	15℃~35℃ (temperature), 10%~75% (humidity)
Working power	220V±10% AC, 50/60Hz
Dimensions	470mm * 260mm * 500mm (WHD)
Weight	35KG

Product Image
