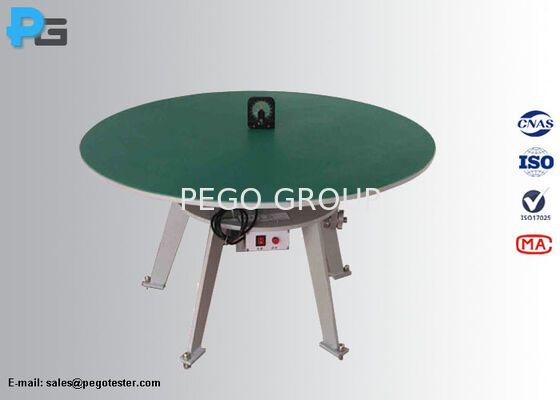

IEC61010-1 Compliant Circular Stability Testing Machine with 0-30° Tilted Angle and Stainless Steel Construction

Large Image : IEC61010-1 Compliant Circular Stability Testing Machine with 0-30° Tilted Angle and Stainless Steel Construction

Product Details:

Place of Origin:	China
Brand Name:	PEGO GROUP
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-WD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1750~USD2000
Packaging Details:	woodencase
Delivery Time:	15 working days
Payment Terms:	T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

Standard:	IEC61010-1	Material:	Stainless Steel
Working Power:	220V/50Hz	Warranty:	12 Months
Application:	Electrical Safety Testing	Shape:	Circular
Highlight:	IEC61010-1 Compliant Stability Testing Machine , 0-30° Tilted Angle Electrical Safety Tester , Stainless Steel Construction Circular Stability Tester

IEC61010-1 Clause 7.4 Electrical Safety Testing Circular Stability Testing Machine

This motor-driven inclined plane stability tester is engineered to evaluate product stability according to international safety standards. Designed for testing large products such as televisions and household appliances, it features innovative cup-type casters for easy mobility and precise angle adjustment.

Compliance Standards

Manufactured in accordance with multiple international safety standards:

IEC60335-1 Clause 20.1 - Household and similar electrical appliances
IEC62368-1:2018 Clause 8.6.2.2 and 8.6.5 - Audio/video and communication equipment
IEC60598-1 Clause 4.13.4 - Luminaires general requirements
IEC60601-1 Clause 9.4.2.1 - Medical electrical equipment
IEC61010-1 Clause 7.4 - Electrical equipment for measurement, control, and laboratory use

Key Features

Single-handed continuous angle adjustment for precise testing positions
Cup-type casters for easy mobility - rotated down during testing, retracted for transport
Level adjustment capability for accurate test setup
Available in multiple platform sizes to accommodate various product dimensions
Motor-driven or hand-actuated operation options

Technical Specifications

Parameter	Specification
Rotation Speed	1 rotation per minute
Tilt Angle Range	0 to 30 degrees
Platform Diameter Options	600mm \| 800mm \| 1000mm
Bearing Capacity	50KG \| 80KG \| 125KG
Drive Mode	Hand-actuated or Motor-driven
Power Requirements	AC220V±10%, 50Hz, 0.3KW
