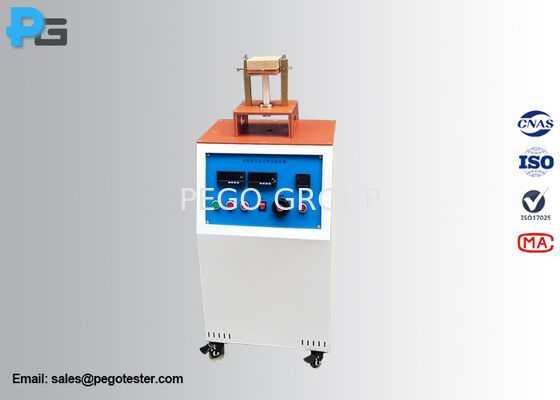

Spark Ignition Test Apparatus for Electric Blankets with 5-12KV Test Voltage, Brass Electrodes, and Adjustable Platform 10mm-100mm

Large Image : Spark Ignition Test Apparatus for Electric Blankets with 5-12KV Test Voltage, Brass Electrodes, and Adjustable Platform 10mm-100mm

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-SIT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD2000~USD3500
Packaging Details:	woodencase
Delivery Time:	15-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Nomative Standard:	IEC60335-2-17	Diameter Of Electrode:	Ø3mm
Material Of Diameter:	Brass	Test Voltage:	5-12KV
Test Current:	0-2mA	Dimension Of Upper Mask:	10010010mm
Dimension Of Lower Mask:	10010030mm	Adjustable Platform:	10mm-100mm
Mass Of Upper Mask:	100g	Working Power:	220V/50Hz
Highlight:	5-12KV Test Voltage Spark Ignition Test Apparatus , Brass Electrodes Electric Blanket Test Equipment , Adjustable Platform 10mm-100mm IEC60335-2-17 Test Equipment

Spark Ignition Equipment for Testing Electric Blankets Conforming to IEC60335-2-17

The electric blanket spark ignition test apparatus is specifically designed to evaluate the flame retardancy of electric blankets according to international safety standards. This equipment verifies whether electric blankets will overheat or burn during flashover conditions in charged bodies, ensuring product safety and compliance.

Product Introduction

This specialized testing equipment is engineered to assess the flame retardancy properties of electric blankets. It tests whether electric blankets will overheat or burn when exposed to flashover conditions in charged bodies, providing essential safety verification. The spark ignition equipment is designed in strict compliance with IEC60335-2-17 clause 30.101 and figure 112 specifications.

Technical Specifications

Component	Specifications
Electrodes	Diameter: Ø3mm Material: Brass construction Configuration: Fixed electrode (45° tip angle) and movable electrode (flat end)
Control System	Button control with integrated meter display
Station Configuration	Single station design
Test Voltage	5-12KV adjustable range
Test Current	0-2mA maximum (output voltage decrease ≤100V at 1mA current)
Timer	0-999 seconds programmable timer
Upper Mask Dimensions	100×100×10mm (Ø50mm aperture)
Lower Mask Dimensions	100×100×30mm (Ø50mm aperture)
Upper Mask Mass	100g
Adjustable Platform	10mm-100mm height adjustment range
Overall Dimensions	650×500×1200mm
Power Supply	220V/50Hz

Equipment Overview
