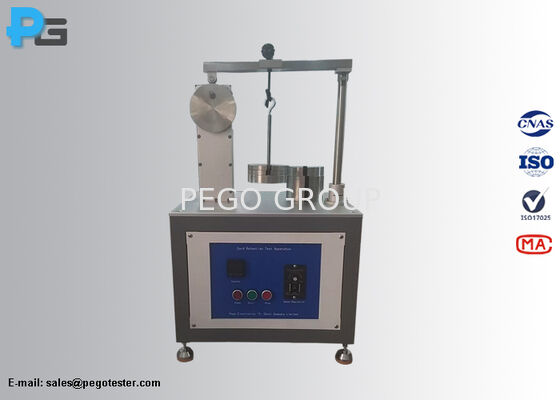

IEC60884-1 Cord Retention Tester with 220V/50Hz Power and 60 Times/Min Rate in SUS304 Stainless Steel

IEC60884-1 Cord Retention Tester with 220V/50Hz Power and 60 Times/Min Rate in SUS304 Stainless Steel
IEC60884-1 Cord Retention Tester with 220V/50Hz Power and 60 Times/Min Rate in SUS304 Stainless Steel
video play

Large Image :  IEC60884-1 Cord Retention Tester with 220V/50Hz Power and 60 Times/Min Rate in SUS304 Stainless Steel

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-CRT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 15 business days
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Application: For Checking The Effectiveness Of The Retention Of The Cable By The Cord Anchorage Standard Conform To: IEC60884-1 Clause 23.2 Figure 20, VDE0620-1
Working Power: 220V/50Hz Warranty: 12 Months
Highlight:

220V/50Hz Cord Retention Tester

,

60 times/min IEC60884-1 Test Apparatus

,

SUS304 Stainless Steel Plug Socket Tester

IEC60884-1 Cord Retention Tester with 220V/50Hz Power and 60 Times/Min Rate in SUS304 Stainless Steel
This cord retention testing apparatus is designed according to IEC60884-1 clause 23.2 figure 20 standards. It evaluates the effectiveness of cable retention by cord anchorage systems in various electrical components including removable plugs, removable mobile sockets, non-rewirable plugs, and rewirable mobile sockets.
Testing Methodology
The equipment subjects flexible cables to repeated pulls of 50N, 60N, 80N, or 100N at a rate of 60 times per minute. Each test applies 100 pulls practically without jerks at a frequency of 1 time per second.
Technical Specifications
Power Supply AC 220V±10%, 50Hz/60Hz
Testing Capacity 1~9999 tests (x1x10x100)
Weights Configuration 10N*1, 60N*1, 20N*2 (Configured to test 40N, 50N, 60N, 80N, 100N weights)
Material SUS304 stainless steel
Testing Rate 60 times/min
Compliance Standards IEC60884 figure 20, VDE0620
Tensile Force Requirements
Rated Current (A) Rated Voltage (V) Tensile Force
2.5 -- 50
2.5～16 <250 60
2.5～16 >250 80
>16 -- 100
Product Illustration
IEC60884-1 Cord Retention Tester with 220V/50Hz Power and 60 Times/Min Rate in SUS304 Stainless Steel 0
Frequently Asked Questions
Will you provide on-site installation service?
The equipment is shipped as a complete unit and requires no on-site installation. Users only need to perform simple wiring connections upon receipt.
What is the warranty period and how can we get after-sales service?
The warranty period is 12 months from the date of receipt. Our engineering team resolves 95% of after-sales issues through remote support. Customers receive responses within 24 business hours. Most issues are resolved through technical guidance, with minimal component failures due to our use of high-quality branded components. Replacement parts are provided free of charge during the warranty period, with installation guidance from our engineers.
Will the device come with a test report?
Yes, the equipment includes a complimentary factory test report. For ISO17025 authorized laboratory calibration certificates, additional charges apply and lead times may be extended.
