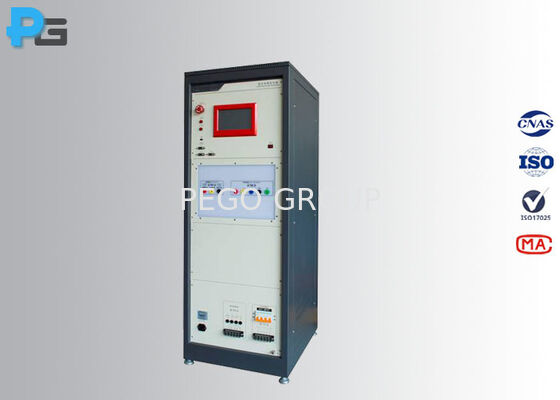

10KV Open Circuit Output Voltage 20A CDN Surge Generator EMC Test Equipment IEC/EN61000-4-5 Compliant

Professional EMC test equipment with 10KV open circuit output voltage and 20A CDN for comprehensive surge immunity testing.

Product Overview

The LSG-1020 Lighting Surge System complies with IEC61000-4-5 and GB/T17626.5 standards, designed for anti-surge performance testing of electronic and electrical products in industrial process measurement and control devices. Includes Coupling/Decoupling Network (CDN) for surge immunity testing in power lines.

Surge Causes & Applications

Switching Transients

Main power supply switch disturbances, including capacitor bank switching
Start/stop operations of nearby devices and load changes in power distribution systems
SCR device switching with resonance circuits
System failures including short circuits and arc faults in grounding networks

Lightning Transients

Direct lightning strikes on external lines injecting high current through ground resistance
Indirect lightning inducing voltage in circuit lines
Electromagnetic fields from nearby lightning strikes causing induced voltage
Lightning ground current coupling in public grounding systems
Rapid current/voltage changes coupling into equipment interiors

Technical Specifications

Parameter	Specification
Output Voltage (Open Circuit)	0.2-10kV ±5%
Voltage Front Time	1.2μs ±30%
Voltage Time to Half-value	50μs ±20%
Output Current (Short Circuit)	5kA±5% (max)
Current Front Time	8μs ±20%
Current Time to Half-value	20μs ±20%
Output Polarity	Positive, negative, positive/negative automatically
Output Impedance	2Ω±10%, 500Ω±10%
Built-in Network Capacity	3 phase, 380V/20A
Coupling Modes	L1-N, L2-N, L3-N, L1-PE, L2-PE, L3-PE, N-PE
Weight	270kg
Dimensions	600mm (L) × 500mm (W) × 1500mm (H)

Key Features

7-inch LCD touch screen with intuitive operation and software update capability
Programmable test sequences with 1000 group memory capacity
External oscilloscope compatibility for surge voltage and current waveform monitoring
Built-in single phase 10A (16A) network for compact design and convenience
High-strength panel plugs for reliable EUT connections
Real-time EUT voltage and current monitoring with overvoltage/overcurrent protection
Intelligent surge output testing with voltage error and no-output warnings
Automatic detection of high voltage and surge output abnormalities

Product Image
