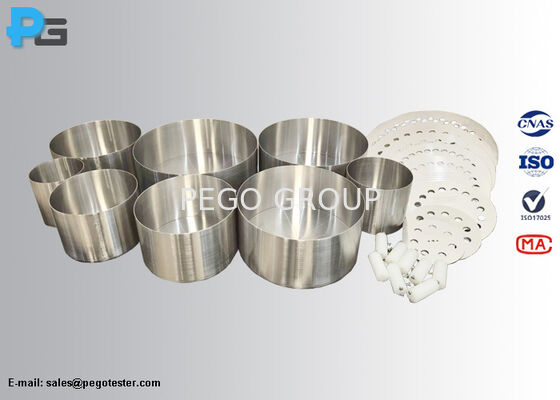

EN 60350-2 Compliant Stainless Steel Standardized Cookware for Energy Measurement with Cylindrical Design

Large Image : EN 60350-2 Compliant Stainless Steel Standardized Cookware for Energy Measurement with Cylindrical Design

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-SSV

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	carton
Delivery Time:	15 business days
Payment Terms:	T/T,PayPal

Contact Now

Detailed Product Description

Reference Standard:	IEC/EN60350-2:2017	Material Of The Saucepan:	Stainless Steel (bottom And Wall), Aluminum (lid)
Diameter Of The Saucepan:	φ120mm, φ150mm, φ180mm, φ210mm, φ240mm, φ270mm, φ300mm, φ330mm	Application:	For Measuring The Energy Comsuption Of Hobs
Shape:	Cylindrical Without Handles	Shipment:	By DHL, FedEx, UPS Or TNT
Highlight:	EN 60350-2 Compliant Standardized Cookware , Stainless Steel Test Vessel , Cylindrical Without Handles Energy Measurement Cookware

EN 60350-2 Compliant Stainless Steel Standardized Cookware for Energy Measurement with Cylindrical Design

Product Overview

These standardized cookware sets are engineered in compliance with EN60350-2:2017 standards for precise measurement of energy consumption in hobs. Manufactured with precision materials and specifications to ensure accurate and repeatable testing results.

Construction & Materials

The vessel side walls are constructed from 1.4301 stainless steel (AISI 304) with a thickness of 1mm±0.05mm, while the bottom utilizes 1.4016 stainless steel (AISI 430) at 6mm±0.05mm thickness. The cookware features a cylindrical design without handles or protrusions. The aluminum lid measures 2mm±0.05mm thick and includes evenly distributed holes with a diameter of 16mm±0.1mm, designed to accommodate temperature sensors at the center.

Technical Specifications

Bottom Diameter (mm)	Lid Diameter (mm)	Hole Circle Diameter (mm)	Number of Holes	Total Height (mm)	Bottom Flatness (mm)	Water Load (g)	Cooking Zone Category (mm)	Cookware Category
120±0.5	130±1	80±1	7	125±0.5	≥0 <0.075	650	≥100 <130	A
150±0.5	165±1	110±1	11	125±0.5	≥0 <0.075	1030	≥130 <160
180±0.5	200±1	140±1	16	125±0.5	≥0 <0.075	1500	≥160 <190	B
210±0.5	230±1	170±1	22	125±0.5	≥0 <0.1	2050	≥190 <220	C
240±0.5	265±1	200±1	29	125±0.5	≥0 <0.1	2700	≥220 <250
270±0.5	300±1	230/210a±1	18/18a	125±0.5	≥0 <0.15	3420	≥250 <280	D
300±0.5	330±1	260/210a±1	23/22a	125±0.5	≥0 <0.15	4240	≥280 <310
330±0.5	365±1	290/270a±1	27/27a	125±0.5	≥0 <0.15	5140	≥310 ≤330

*Note: Holes are arranged on two hole circles for sizes marked with "a"

Frequently Asked Questions

What materials are used in the standardized cookware?
The vessel side walls are made of 1.4301 stainless steel (AISI 304), the bottom uses 1.4016 stainless steel (AISI 430), and the lid is constructed from aluminum.
Can individual sizes be purchased separately?
Yes, each size of standardized cookware is available for individual purchase.
Are calibration certificates available?
Yes, calibration certificates from ISO17025 authorized laboratories are available as an additional service, with calibration costs charged separately.
Do the cookware sets include temperature sensor holders?
Yes, each cookware unit is configured with a temperature sensor holder.
