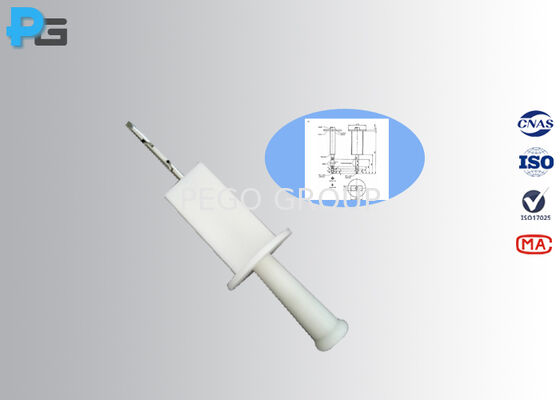

IEC 62196 Compliant Test Finger Probe with 42V Electric Indicator and 80±0.2mm Finger Length

IEC 62196 Compliant Test Finger Probe with 42V Electric Indicator and 80±0.2mm Finger Length
IEC 62196 Compliant Test Finger Probe with 42V Electric Indicator and 80±0.2mm Finger Length

Large Image :  IEC 62196 Compliant Test Finger Probe with 42V Electric Indicator and 80±0.2mm Finger Length

Product Details:
Place of Origin: China
Brand Name: PEGO GROUP
Certification: Third-Lab Calibration Certificate
Model Number: PG-TPB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton box
Delivery Time: 7 working days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Applied Standard: IEC62196-1, IEC61032, IEC60529 Etc. Finger Length: 80±0.2
Jointed Size 1: 30±0.2 Jointed Size 2: 60±0.2
Diameter Of Baffle: Ф75±0.2 IP Code: IP2X
Application: Testing EV Socket-outlets And Vehicle Connectors Warranty: 12months
Highlight:

42V Electric Indicator Test Finger Probe

,

IEC 62196 Compliant Jointed Test Finger

,

80±0.2mm Finger Length IEC 62196 Test Probe

EV Connectors Testing Equipment IEC 62196 Test Finger Probe B with 42V Electric Indicator
Test Finger Probe B is a high-precision testing instrument designed specifically for evaluating EV socket-outlets and vehicle connectors. Manufactured in strict compliance with international safety standards, this equipment ensures reliable protection testing for electrical components.
Product Overview
The Test Finger Probe B is engineered to verify basic protection against access to hazardous parts and assess finger protection capabilities. The probe features a comprehensive design including finger, baffle, and insulated handle components. Customization options include an alligator clip for anti-electric shock testing and M6 threaded holes for integration with pull/push dynamometers or direct 10N thruster attachment for enclosure protection testing.
Technical Specifications
Model PG-TPB PG-TPB(1) PG-TPB(2) PG-TPB(3)
Jointed size 1 30±0.2 30±0.2 30±0.2 30±0.2
Jointed size 2 60±0.2 60±0.2 60±0.2 60±0.2
Finger length 80±0.2 80±0.2 100±0.2 80±0.2
Fingertip to baffle size 180±0.2 180±0.2 ---- 180±0.2
Fingertip cutting cylindrical R2±0.05 R2±0.05 R2±0.05 R2±0.05
Fingertip fillet S4±0.05 S4±0.05 S4±0.05 S4±0.05
Fingertip cut angle 37° 0 -10′ 37° 0 -10′ 37° 0 -10′ 37° 0 -10′
Fingertip taper 14° 0 -10′ 14° 0 -10′ 14° 0 -10′ 14° 0 -10′
Diameter Ф12 0 -0.05 Ф12 0 -0.05 Ф12 0 -0.05 Ф12 0 -0.05
Diameter of section A-A Ф50 Ф50 ---- Ф50
Width of section A-A 20±0.2 ---- ---- 20±0.2
Diameter of baffle Ф75±0.2 Ф75±0.2 Ф125±0.2 Ф75±0.2
Thickness of baffle 5±0.5 5±0.5 ---- 5±0.5
Force ---- ---- ---- 10-30N
Standard compliance IEC61032 IEC60335-1 IEC60335-2-14 IEC60529
Product Image
IEC 62196 Compliant Test Finger Probe with 42V Electric Indicator and 80±0.2mm Finger Length 0
Frequently Asked Questions
What standards does the Test Finger Probe B conform to?
The probe meets IEC61032, IEC60529, IEC62196, IEC60335, IEC61851-1, IEC60061 and other relevant international safety standards.
Does the Test Finger Probe B include a calibration certificate?
Yes, a third-party laboratory calibration certificate is available as an optional accessory with separate cost.
What is the lead time for the Test Finger Probe B?
We maintain stock availability for immediate delivery upon order confirmation.
Is the probe available with a thruster?
Two models are available: one without thruster featuring an M6 threaded hole, and another with integrated thruster customizable at 10N, 50N, or other specified force requirements.
