Programmable Auto Safety Tester with 4 in 1 Equipment, 7-inch TFT Display and PLC Interfaces for Comprehensive Electrical Testing

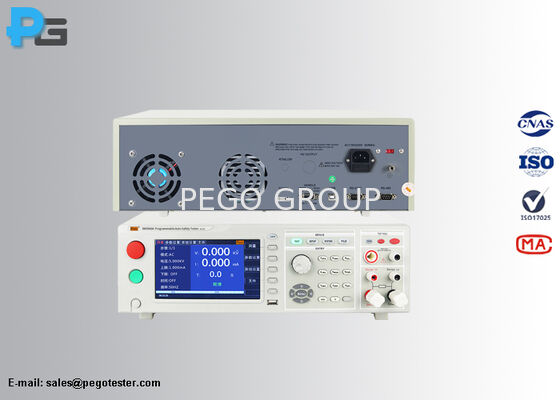

Large Image : Programmable Auto Safety Tester with 4 in 1 Equipment, 7-inch TFT Display and PLC Interfaces for Comprehensive Electrical Testing

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	RK9960

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD2000~USD5000
Packaging Details:	carton
Delivery Time:	5-10 working days
Payment Terms:	T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Test Function:

AC Withstand Voltage, DC Withstand Voltage, Ground Resistance, Insulation Resistance

Test Voltage:

0-5KV

Compliance Standards:

IEC60335-1, GB4706.1, UL60335-1, UL60950, GB4943, IEC60065, IEC61010-1, GB4793.1

Input:

220V, 50/60Hz

Highlight:

4 in 1 Equipment Auto Safety Tester

7-inch TFT Display Programmable Safety Tester

PLC Interfaces Electrical Safety Tester

Programmable Auto Safety Tester (4-in-1 Equipment)

Comprehensive testing solution integrating AC withstand voltage, DC withstand voltage, insulation resistance, and ground resistance tests in a single unit.

Product Overview

This programmable auto safety tester combines four essential electrical safety testing functions into one efficient system. Utilizing high-speed MCUs and advanced digital circuitry, it provides precise control over output voltage magnitude, rise/fall times, and frequency. The system features real-time display of breakdown current and voltage values, software calibration capabilities, and comprehensive connectivity options including PLC, RS232C, RS485, USB device, and USB Host interfaces.

Key Features

Four-in-one functionality: AC/DC withstand voltage, insulation, and grounding tests
DDS (Direct Digital Synthesis) technology for high-precision sinusoidal signals
Adjustable high voltage rise/fall times with arc detection capability
Dual-frequency testing support (50Hz and 60Hz)
User-friendly interface with digital keypad and dial input options
Comprehensive operation help prompts and synchronized test status display
Bilingual interface (Chinese/English) with large-capacity storage
7-inch TFT LCD display for clear measurement visualization

Technical Specifications

Parameter	RK9960	RK9960A	RK9960T
AC Withstand Voltage (ACW)
Output voltage range	0.05-5KV
Maximum output power	100VA (5KV/20mA)	50VA (5KV/10mA)	500VA (5KV/100mA)
Maximum rated current	0.001mA-20mA	0.001mA-10mA	0.001mA-100mA
DC Withstand Voltage (DCW)
Output voltage range	0.05-6KV
Maximum output power	60VA (6KV/10mA)	30VA (6KV/5mA)	300VA (6KV/50mA)
Maximum rated current	0.1uA-10mA	0.1uA-5mA	0.1uA-50mA
Insulation Resistance (IR)
Output voltage (DC)	0.10-1KV	0.10-1KV	0.10-5KV
Test range and accuracy	≥500V: 1MΩ-1GΩ±(5% reading±5 digits) 1GΩ-10GΩ±(10% reading ±5 digits) <500V: 0.1MΩ-1GΩ±(10% reading±5 digits)	≥500V: 1MΩ-1GΩ±(5% reading±5 digits) 1GΩ-10GΩ±(10% reading±5 digits) <500V: 0.2MΩ-1GΩ±(10% reading±5 digits)	≥500V: 0.10MΩ-1.0GΩ±5% 1.0G-50.0GΩ ±10% 50.0GΩ-100.0GΩ ±15% <500V: 0.10MΩ-1.0GΩ ±10% 1.0GΩ-10.0GΩ ±15%
Ground Resistance (GR)
Output current	AC 3-32A
Test range	0-510mΩ @ 3-10A; 0-120mΩ @ 10-32A
General Specifications
Timer range	0.0-999.9s (0.1s resolution)
Test time	01s-999s, OFF=Continuous testing
Arc Detection	0-20mA
Output frequency	50Hz/60Hz
Working temperature	0-40℃, ≤75%RH
Working power	110/220 ±10% 50Hz/60Hz ±3Hz
Connector	RS232, USB, PLC, RS485
Screen	7 inch TFT, 800mm*480mm
Dimension	D440mmW485mmH135mm	D440mmW485mmH135mm	D440mmW670mmH140mm
Net Weight	23KG	21KG	37.4KG

Included Accessories

HV test wire, test loop, Ground test clip, "+" sharp uncontrolled HV test rod

Compliance Standards

IEC60335-1, GB4706.1, UL60335-1, UL60950, GB4943, IEC60065, IEC61010-1, GB4793.1 and related standards
