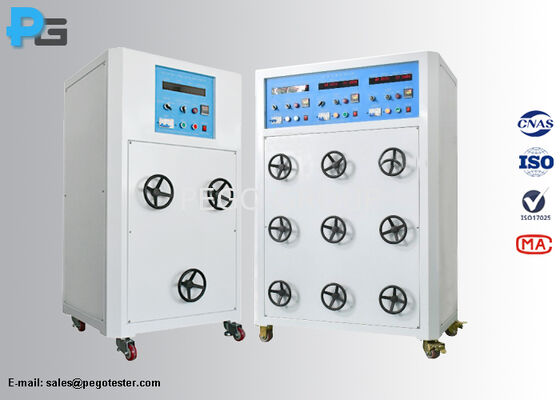

300V/30A Resistive Inductive Capacitive Power Load Cabinet for Plug Socket Coupler and Switches Testing Compliant with IEC60884-1 IEC60669-1

300V/30A Resistive Inductive Capacitive Power Load Cabinet for Plug Socket Coupler and Switches Testing Compliant with IEC60884-1 IEC60669-1
300V/30A Resistive Inductive Capacitive Power Load Cabinet for Plug Socket Coupler and Switches Testing Compliant with IEC60884-1 IEC60669-1

Large Image :  300V/30A Resistive Inductive Capacitive Power Load Cabinet for Plug Socket Coupler and Switches Testing Compliant with IEC60884-1 IEC60669-1

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-PLC30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 30 business days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10sets/month
Contact Now
Detailed Product Description
Reference Standard: IEC60884-1, IEC60669-1 Application: For Testing Plug, Socket, Coupler, Switches
Working Stations: 1, 2, 3 For Option Output Voltage: 0-300V (customizable)
Output Current: 0-30A (customizable) Load Type: Resistive, Inductive, Capactive
Capacitive Load: 70μF, 140μF, 7.3μF Working Power: AC220±10%, 50Hz
Highlight:

300V/30A Power Load Cabinet

,

Resistive Inductive Capacitive Plug Socket Tester

,

IEC60884-1 IEC60669-1 Load Testing Equipment

Resistive Inductive and Capacitive Power Load Cabinet 300V/30A
Professional testing equipment for plug socket coupler and switches testing, designed to meet IEC60884-1 and IEC60669-1 standards.
Product Overview
The Power Load Cabinet serves as essential support equipment for plug socket-outlet and switch life testing machines. It meets rigorous testing requirements specified in IEC60884-1 clauses 20 and 21, and IEC60669-1 clauses 19.1 and 19.2.
Key Features
  • Switchable output types: resistive, capacitive (fluorescent lamp load), and inductive
  • Equipped with 4 casters for easy mobility
  • Advanced strong wind convection cooling system
  • Presetable test cycles: 0-999,999 operations
  • Over-limit alarm and automatic cutoff protection
Technical Specifications
Model PG-PLD601 PG-PLD303
Control Unit Button control + meter display
Working Station 1 3
Output Voltage Range: 0-300V ±0.5% Range: 0-300V ±0.5%
Output Current Range: 0-60A ±0.5% Range: 0-30A ±0.5%
Power Factor Range: 0.3-0.99 ±0.5% Range: 0.3-0.98 ±0.5%
Load Type Resistive, inductive, capacitive (switchable)
Capacitive Load 70μF, 140μF, 7.3μF selectable
Load Capacity 1*25KVA 3*10KVA
Over Limit Alarm 60A limit, cutoff at 62A 30A limit, cutoff at 32A
Dimension W800*D1000*H1600mm W1100*D800*H1800mm
Weight Approx. 300kg Approx. 400kg
Working Power AC220V/50Hz (single phase) AC380V/50Hz (3 phases 4 wires)
Operating Conditions
Atmospheric pressure: 80-106kpa | Ambient temperature: 5-40°C | Relative humidity: 20-80%RH | Environment: No violent shaking, vibration, electromagnetic interference, dust, explosive and corrosive gases, with adequate heat dissipation.
