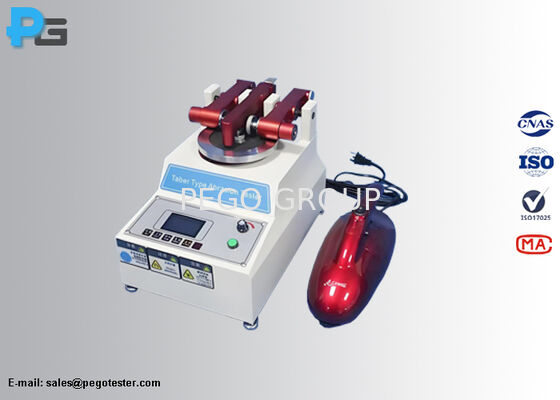

ISO9352 Compliant Abrasion Test Machine with Adjustable Rotation Speed and Multiple Abrasive Wheels for Wear Resistance Testing

Large Image : ISO9352 Compliant Abrasion Test Machine with Adjustable Rotation Speed and Multiple Abrasive Wheels for Wear Resistance Testing

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-TBA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD2000~USD5000
Packaging Details:	woodencase
Delivery Time:	15-20 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Compliant Standards:

ISO9352, ISO5470, ASTM D1044-05 And ASTM D3884

Abrasive Wheel Types:

CS10F, CS10, CS17, H38, H10, H18, H22 Optional

Application:

For Testing The Leather, Fabric, Coatings, Paper, Floor Tiles, Plywood, Glass, And Natural Rubber

Input:

220V, 50Hz/60Hz

Highlight:

ISO9352 Compliant Abrasion Test Machine

Adjustable Rotation Speed Taber Abrasion Tester

Multiple Abrasive Wheels Wear Resistance Tester

ISO9352 Abrasion Test Machine with Abrasive Wheels

The ISO9352 Abrasion Test Machine is engineered for comprehensive wear resistance testing of leather, rubber, glass, and various other materials. This precision instrument automatically stops after completing preset test cycles, enabling accurate evaluation through wear pattern inspection or weight loss measurement.

Applications & Compliance

Designed to meet ISO9352, ISO5470, ASTM D1044-05, and ASTM D3884 standards, this tester evaluates wear resistance across multiple materials including leather, fabric, coatings, paper, floor tiles, plywood, glass, and natural rubber.

Testing Methodology

Samples are precision-cut using standard cutters and subjected to abrasion with specified grinding wheels under controlled load conditions. The automated system ensures consistent testing parameters and reliable results.

Technical Specifications

Test Specimen Diameter	OD: Φ100mm, ID: Φ6-8mm
Working Table Diameter	Φ108mm
Balance Counterweights	250g2, 500g2, 1000g*2
Counter Setting Range	0-999999 (auto stop)
Disc Rotation Speed	0-70R/min adjustable
Abrasive Wheel Types	CS10F, CS10, CS17, H38, H10, H18, H22 (optional)
Vacuum System	2 vacuum nozzles with 8mm diameter
Power Requirements	220V±10%, 50Hz
Dimensions & Weight	300mm * 430mm * 300mm / 30KG
Standard Accessories	Vacuum device included
